• Barrel bolt with knob handle, without spring, with countersunk screw holes, Material: raw steel, Surface: galvanised, thick-film passivated, with attached staple, Plate length: 33 mm, Plate width: 35 mm, Bolt-Ø: 7 mm, Loop width: 10 mm, Loop length: 37 mm, Total length: 50 mm, No. of holes: 6, Hole: Ø3.8 mm
  • Barrel bolt with knob handle, without spring, with countersunk screw holes, Material: raw steel, Surface: galvanised, thick-film passivated, with attached staple, Plate length: 33 mm, Plate width: 35 mm, Bolt-Ø: 7 mm, Loop width: 10 mm, Loop length: 37 mm, Total length: 50 mm, No. of holes: 6, Hole: Ø3.8 mm

Barrel bolt with knob handle

with countersunk screw holes
Art.-No. 123352
3 Variants

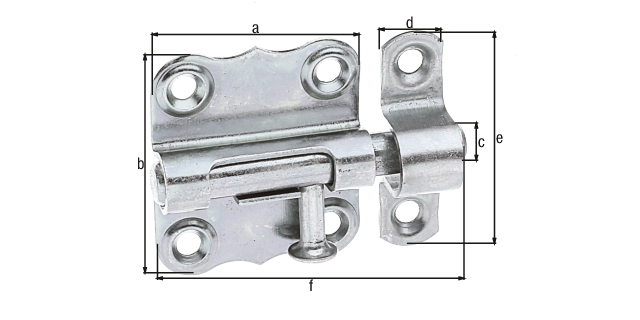

Dimension a:
33 mm
Dimension b:
35 mm
Dimension c-Ø:
7 mm
Dimension d:
10 mm
Dimension e:
37 mm
Dimension f:
50 mm
Extension length:
16 mm
Quantity x hole Ø:
6 x Ø3.8 mm
Material/surface:
raw steel, galvanised, thick-film passivated, with attached staple
Systems:
Bolts
Surface / Colour:
VERZ
Material:
Steel
Panel width:
35 mm
:
50 mm
Panel length:
33 mm
:
7 mm
Weight per UQ (kg):
0.037 kg
Contents Unit:
12 Piece
Article-No.
Dimension a
Dimension b
Dimension c-Ø
Dimension d
Action
Article-No. 123352
Dimension a 33 mm
Dimension b 35 mm
Dimension c-Ø 7 mm
Dimension d 10 mm
Article-No. 123369
Dimension a 39 mm
Dimension b 38 mm
Dimension c-Ø 8 mm
Dimension d 10 mm
Article-No. 123376
Dimension a 47 mm
Dimension b 46 mm
Dimension c-Ø 9 mm
Dimension d 13 mm
  • with reinforced screw holes
  • When closed, the locked head prevents undesirable loosening due to vibration.
