• Barrel bolt with knob handle, with countersunk screw holes, Material: brass, Surface: nickel-plated, polished, with attached staple, Plate length: 63 mm, Plate width: 26 mm, Bolt-Ø: 7.3 mm, Loop width: 16 mm, Loop length: 26 mm, No. of holes: 6, Hole: Ø3.3 mm, CutCase
  • Barrel bolt with knob handle, with countersunk screw holes, Material: brass, Surface: nickel-plated, polished, with attached staple, Plate length: 63 mm, Plate width: 26 mm, Bolt-Ø: 7.3 mm, Loop width: 16 mm, Loop length: 26 mm, No. of holes: 6, Hole: Ø3.3 mm, CutCase

Barrel bolt with knob handle

with countersunk screw holes
Art.-No. 124618

brass, nickel-plated, polished, with attached staple

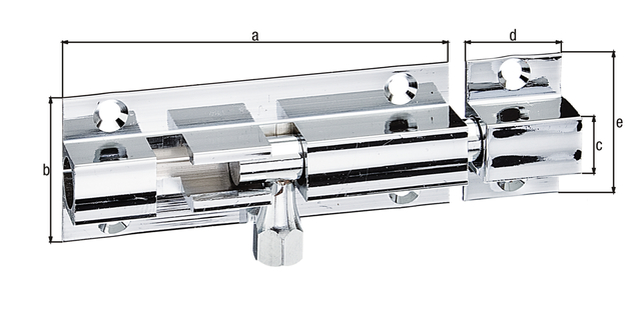

Dimension a:
63 mm
Dimension b:
26 mm
Dimension c-Ø:
7.3 mm
Dimension d:
16 mm
Dimension e:
26 mm
Extension length:
13 mm
Quantity x hole Ø:
6 x Ø3.3 mm
Material/surface:
brass, nickel-plated, polished, with attached staple
Systems:
Bolts
Surface / Colour:
VNKLT
Material:
Brass
Panel width:
26 mm
Panel length:
63 mm
:
7.3 mm
Weight per UQ (kg):
0.06 kg
Contents Unit:
10 Piece
  • When closed, the locked head prevents undesirable loosening due to vibration.
