Bolt lock with round handle

with countersunk screw holes
Art.-No. 127763

raw steel, galvanised, thick-film passivated, with attached staple

3 Variants

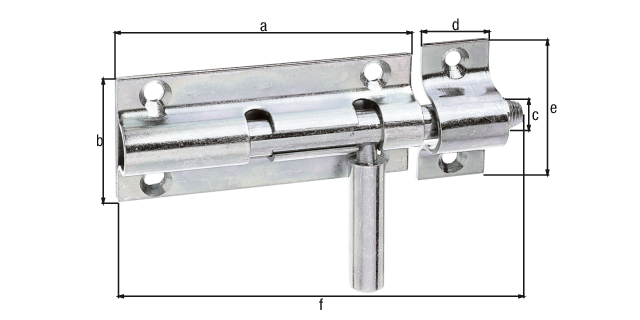

Dimension a:
80 mm
Dimension b:
36 mm
Dimension c-Ø:
10 mm
Dimension d:
20 mm
Dimension e:
41 mm
Dimension f:
110 mm
Extension length:
29 mm
Quantity x hole Ø:
4 x Ø5.5 mm
Quantity x hole Ø:
2 x Ø4 mm
Material/surface:
raw steel, galvanised, thick-film passivated, with attached staple
Systems:
Bolts
Surface / Colour:
VERZ
Material:
Steel
Panel width:
36 mm
:
110 mm
Panel length:
80 mm
:
10 mm
Weight per UQ (kg):
0.16 kg
Contents Unit:
10 Piece
Article-No.
Dimension a
Dimension b
Dimension c-Ø
Dimension d
Action
Article-No. 127763
Dimension a 80 mm
Dimension b 36 mm
Dimension c-Ø 10 mm
Dimension d 20 mm
Article-No. 127961
Dimension a 120 mm
Dimension b 41 mm
Dimension c-Ø 12 mm
Dimension d 20 mm
Article-No. 128166
Dimension a 160 mm
Dimension b 60 mm
Dimension c-Ø 16 mm
Dimension d 25 mm
