• Bolt lock with round handle, with countersunk screw holes, Material: raw steel, Surface: galvanised, thick-film passivated, with attached staple, Plate length: 80 mm, Plate width: 59 mm, Bolt-Ø: 10 mm, Loop width: 16 mm, Loop length: 58 mm, Total length: 125 mm, No. of holes: 6 / 2, Hole: Ø5.3 / Ø4.2 mm
  • Bolt lock with round handle, with countersunk screw holes, Material: raw steel, Surface: galvanised, thick-film passivated, with attached staple, Plate length: 80 mm, Plate width: 59 mm, Bolt-Ø: 10 mm, Loop width: 16 mm, Loop length: 58 mm, Total length: 125 mm, No. of holes: 6 / 2, Hole: Ø5.3 / Ø4.2 mm

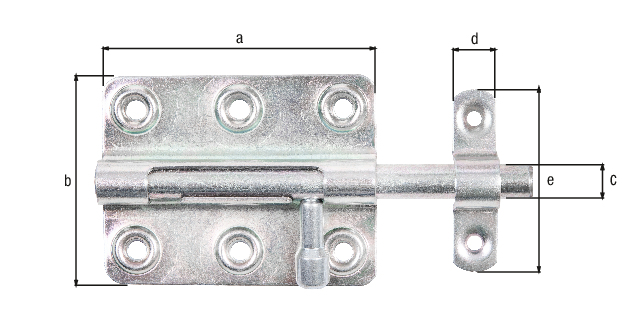

Bolt lock with round handle

with countersunk screw holes
Art.-No. 128975
2 Variants
Dimension a:
80 mm
Dimension b:
59 mm
Dimension c-Ø:
10 mm
Dimension d:
16 mm
Dimension e:
58 mm
Dimension f:
125 mm
Extension length:
43 mm
Quantity x hole Ø:
6 x Ø5.3 mm
Quantity x hole Ø:
2 x Ø4.2 mm
Material/surface:
raw steel, galvanised, thick-film passivated, with attached staple
Systems:
Bolts
Surface / Colour:
VERZ
Material:
Steel
Panel width:
59 mm
:
125 mm
Panel length:
80 mm
:
10 mm
Weight per UQ (kg):
0.155 kg
Contents Unit:
6 Piece
Article-No.
Dimension a
Dimension b
Dimension c-Ø
Dimension d
Action
Article-No. 128975
Dimension a 80 mm
Dimension b 59 mm
Dimension c-Ø 10 mm
Dimension d 16 mm
Article-No. 128982
Dimension a 100 mm
Dimension b 59 mm
Dimension c-Ø 10 mm
Dimension d 16 mm
