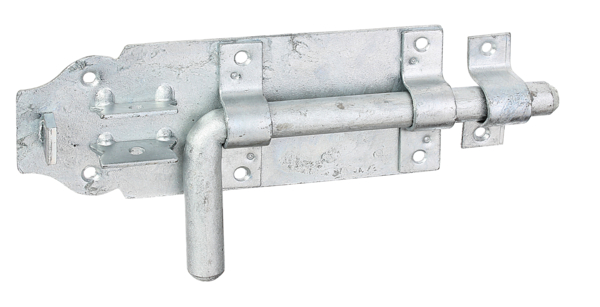

• Bolt lock with round handle, with countersunk screw holes, Material: raw steel, Surface: hot-dip galvanised, with attached staple, Plate length: 180 mm, Plate width: 70 mm, Bolt-Ø: 16 mm, Loop width: 20 mm, Loop length: 58 mm, Total length: 230 mm, Extension length: 49 mm, No. of holes: 6 / 2, Hole: Ø5.5 / Ø5 mm
  • Bolt lock with round handle, with countersunk screw holes, Material: raw steel, Surface: hot-dip galvanised, with attached staple, Plate length: 180 mm, Plate width: 70 mm, Bolt-Ø: 16 mm, Loop width: 20 mm, Loop length: 58 mm, Total length: 230 mm, Extension length: 49 mm, No. of holes: 6 / 2, Hole: Ø5.5 / Ø5 mm

Bolt lock with round handle

with countersunk screw holes
Art.-No. 124366

raw steel, hot-dip galvanised, with attached staple

2 Variants
Dimension a:
180 mm
Dimension b:
70 mm
Dimension c-Ø:
16 mm
Dimension d:
20 mm
Dimension e:
58 mm
Dimension f:
230 mm
Extension length:
49 mm
Quantity x hole Ø:
6 x Ø5.5 mm
Quantity x hole Ø:
2 x Ø5 mm
Material/surface:
raw steel, hot-dip galvanised, with attached staple
Systems:
Bolts
Surface / Colour:
FVZ
Material:
Steel
Panel width:
70 mm
:
230 mm
Panel length:
180 mm
:
16 mm
Weight per UQ (kg):
0.596 kg
Contents Unit:
5 Piece
Article-No.
Dimension a
Dimension b
Dimension c-Ø
Dimension d
Action
Article-No. 124359
Dimension a 160 mm
Dimension b 70 mm
Dimension c-Ø 16 mm
Dimension d 20 mm
Article-No. 124366
Dimension a 180 mm
Dimension b 70 mm
Dimension c-Ø 16 mm
Dimension d 20 mm
