• Door bolt with flat handle, with countersunk screw holes, Material: raw steel, Surface: galvanised, thick-film passivated, type: straight, with attached staple, Plate length: 100 mm, Plate width: 44 mm, Slide width: 16 mm, Width of locking plate: 13 mm, Length of locking plate: 45 mm, No. of holes: 6 / 2, Hole: Ø5 / Ø4 mm
  • Door bolt with flat handle, with countersunk screw holes, Material: raw steel, Surface: galvanised, thick-film passivated, type: straight, with attached staple, Plate length: 100 mm, Plate width: 44 mm, Slide width: 16 mm, Width of locking plate: 13 mm, Length of locking plate: 45 mm, No. of holes: 6 / 2, Hole: Ø5 / Ø4 mm

Door bolt with flat handle

with countersunk screw holes
Art.-No. 134402

raw steel, galvanised, thick-film passivated, type: straight, with attached staple

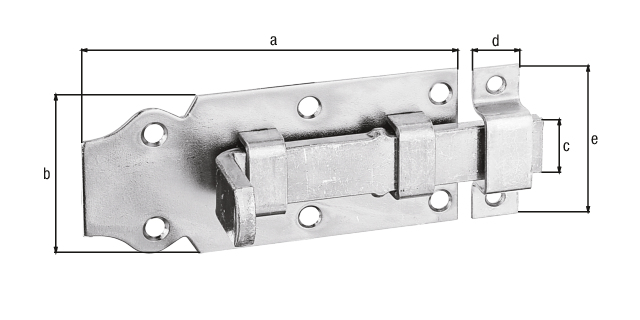

Dimension a:
100 mm
Dimension b:
44 mm
Dimension c:
16 mm
Dimension d:
13 mm
Dimension e:
45 mm
Extension length:
23 mm
Quantity x hole Ø:
6 x Ø5 mm
Quantity x hole Ø:
2 x Ø4 mm
Material/surface:
raw steel, galvanised, thick-film passivated, type: straight, with attached staple
Systems:
Bolts
Surface / Colour:
VERZ
Material:
Steel
Panel width:
44 mm
Panel length:
100 mm
Weight per UQ (kg):
0.119 kg
Contents Unit:
10 Piece
