Door bolt with knob handle

with countersunk screw holes
Art.-No. 123154

raw steel, galvanised, thick-film passivated, with attached staple

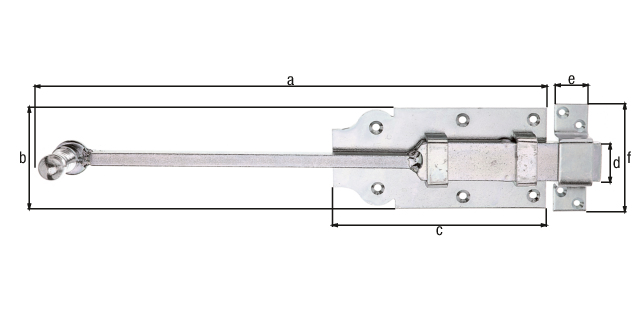

Dimension a:
365,8 mm
Dimension b:
160 mm
Dimension c:
80 mm
Dimension d:
30 mm
Dimension e:
26 mm
Dimension f:
86 mm
Extension length:
40 mm
Square bar:
10 x 10 mm
Quantity x hole Ø:
2 x Ø4.7 mm
Quantity x hole Ø:
6 x Ø5.5 mm
Quantity x hole Ø:
4 x Ø5 mm
Material/surface:
raw steel, galvanised, thick-film passivated, with attached staple
Systems:
Bolts
Surface / Colour:
VERZ
Material:
Steel
Panel width:
80 mm
Length:
365,8 mm
Panel length:
160 mm
Weight per UQ (kg):
0.85 kg
Contents Unit:
5 Piece
  • for locking the second gate leaf at the top and bottom
