• Lock bolt with flat handle, with countersunk screw holes, Material: raw steel, Surface: blue galvanised, plate black painted, type: straight, with attached staple, Plate length: 100 mm, Plate width: 44 mm, Slide width: 16 mm, Loop width: 13 mm, Loop length: 45 mm, No. of holes: 6 / 2, Hole: Ø5 / Ø4 mm
  • Lock bolt with flat handle, with countersunk screw holes, Material: raw steel, Surface: blue galvanised, plate black painted, type: straight, with attached staple, Plate length: 100 mm, Plate width: 44 mm, Slide width: 16 mm, Loop width: 13 mm, Loop length: 45 mm, No. of holes: 6 / 2, Hole: Ø5 / Ø4 mm

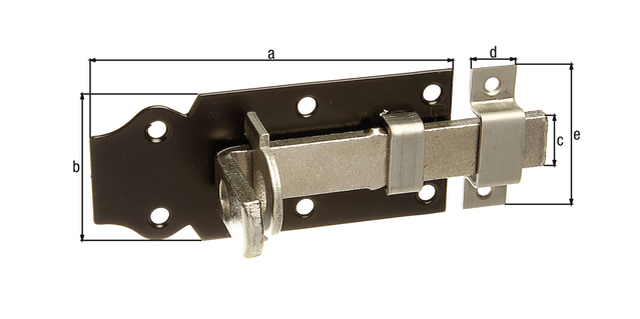

Lock bolt with flat handle

with countersunk screw holes
Art.-No. 116064

raw steel, blue galvanised, plate black painted, type: straight, with attached staple

3 Variants
Dimension a:
100 mm
Dimension b:
44 mm
Dimension c:
16 mm
Dimension d:
13 mm
Dimension e:
45 mm
Extension length:
27 mm
Quantity x hole Ø:
6 x Ø5 mm
Quantity x hole Ø:
2 x Ø4 mm
Material/surface:
raw steel, blue galvanised, plate black painted, type: straight, with attached staple
Systems:
Bolts
Surface / Colour:
black
Material:
Steel
Panel width:
44 mm
Panel length:
100 mm
Weight per UQ (kg):
0.133 kg
Contents Unit:
10 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No. 116064
Dimension a 100 mm
Dimension b 44 mm
Dimension c 16 mm
Dimension d 13 mm
Article-No. 116071
Dimension a 120 mm
Dimension b 44 mm
Dimension c 16 mm
Dimension d 13 mm
Article-No. 116088
Dimension a 140 mm
Dimension b 52 mm
Dimension c 20 mm
Dimension d 16 mm
