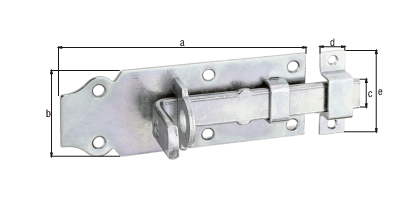

Lock bolt with flat handle
with countersunk screw holes
Art.-No. 116750
- Dimension a:
- 100 mm
- Dimension b:
- 44 mm
- Dimension c:
- 16 mm
- Dimension d:
- 13 mm
- Dimension e:
- 45 mm
- Extension length:
- 27 mm
- Fastening type:
- for screwing on
- Quantity x hole Ø:
- 6 x Ø5 mm
- Quantity x hole Ø:
- 2 x Ø4 mm
- Material/surface:
- raw steel, galvanised, thick-film passivated, type: straight, with attached staple
- Systems:
- Bolts
- Surface / Colour:
- VERZ
- Material:
- Steel
- Panel width:
- 44 mm
- Panel length:
- 100 mm
- Weight per UQ (kg):
- 0.125 kg
- Contents Unit:
- 10 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No.
116750
Dimension a
100 mm
Dimension b
44 mm
Dimension c
16 mm
Dimension d
13 mm
Article-No.
116767
Dimension a
120 mm
Dimension b
44 mm
Dimension c
16 mm
Dimension d
13 mm
Article-No.
116774
Dimension a
140 mm
Dimension b
52 mm
Dimension c
20 mm
Dimension d
16 mm
Article-No.
116781
Dimension a
160 mm
Dimension b
56 mm
Dimension c
22 mm
Dimension d
16 mm
Article-No.
116743
Dimension a
180 mm
Dimension b
64 mm
Dimension c
25 mm
Dimension d
20 mm
Article-No.
116798
Dimension a
200 mm
Dimension b
64 mm
Dimension c
25 mm
Dimension d
20 mm
