• Locking tower bolt with flat handle, Material: raw steel, Surface: blue galvanised, with attached staple, Plate length: 70 mm, Plate width: 67 mm, Bolt-Ø: 9.5 mm, Loop width: 16 mm, Loop length: 53 mm, Total length: 100 mm, Extension length: 29 mm, No. of holes: 8, Hole: Ø5 mm
  • Locking tower bolt with flat handle, Material: raw steel, Surface: blue galvanised, with attached staple, Plate length: 70 mm, Plate width: 67 mm, Bolt-Ø: 9.5 mm, Loop width: 16 mm, Loop length: 53 mm, Total length: 100 mm, Extension length: 29 mm, No. of holes: 8, Hole: Ø5 mm

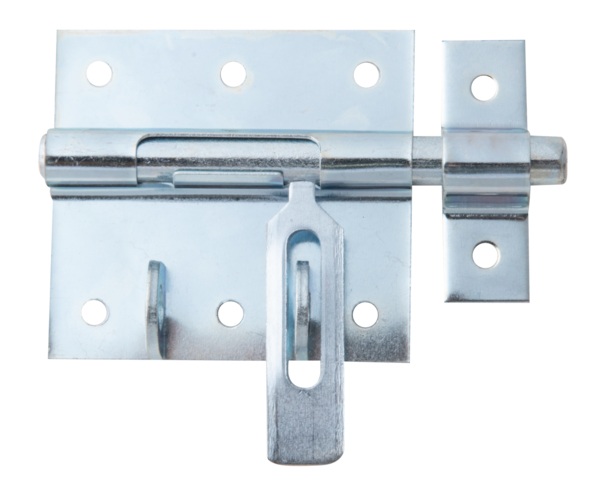

Locking tower bolt with flat handle

Art.-No. 137076
4 Variants

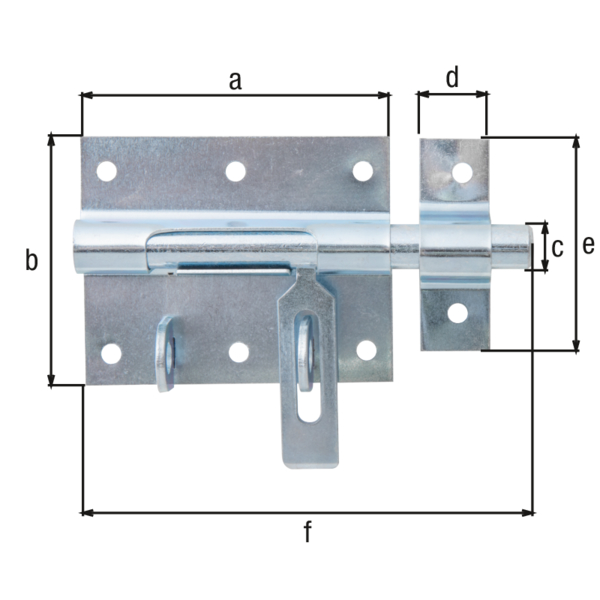

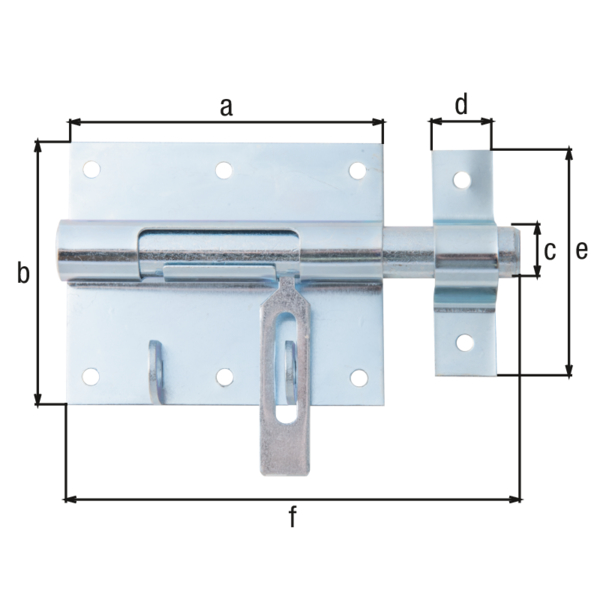

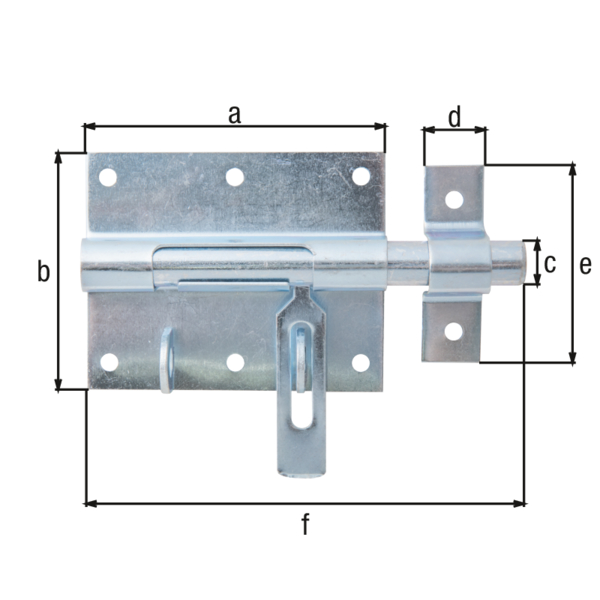

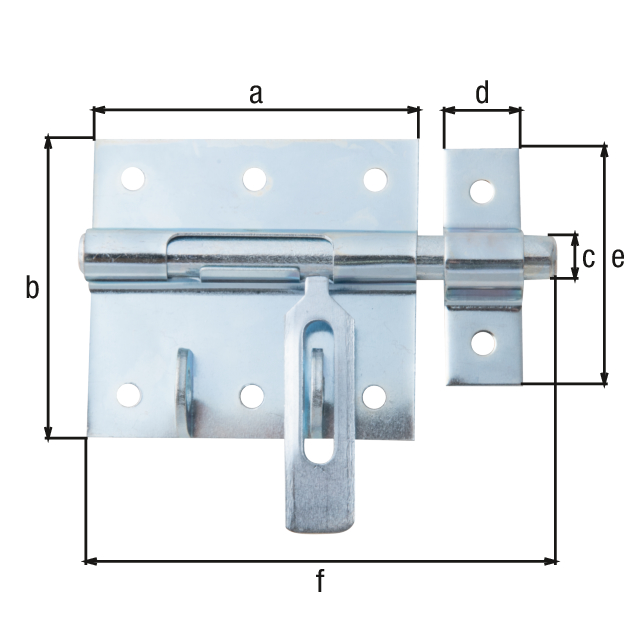

Dimension a:
70 mm
Dimension b:
67 mm
Dimension c-Ø:
9.5 mm
Dimension d:
16 mm
Dimension e:
53 mm
Dimension f:
100 mm
Extension length:
29 mm
Quantity x hole Ø:
8 x Ø5 mm
Material/surface:
raw steel, blue galvanised, with attached staple
Systems:
Bolts
Surface / Colour:
VERZ
Material:
Steel
Panel width:
67 mm
:
100 mm
Panel length:
70 mm
:
9.5 mm
Weight per UQ (kg):
0.117 kg
Contents Unit:
10 Piece
