• Locking tower bolt with flat handle, Material: raw steel, Surface: blue galvanised, with attached staple, Plate length: 80 mm, Plate width: 64 mm, Bolt-Ø: 11.5 mm, Loop width: 18 mm, Loop length: 57 mm, Total length: 116 mm, Extension length: 35 mm, No. of holes: 8, Hole: Ø5 mm
  • Locking tower bolt with flat handle, Material: raw steel, Surface: blue galvanised, with attached staple, Plate length: 80 mm, Plate width: 64 mm, Bolt-Ø: 11.5 mm, Loop width: 18 mm, Loop length: 57 mm, Total length: 116 mm, Extension length: 35 mm, No. of holes: 8, Hole: Ø5 mm

Locking tower bolt with flat handle

Art.-No. 137083
4 Variants

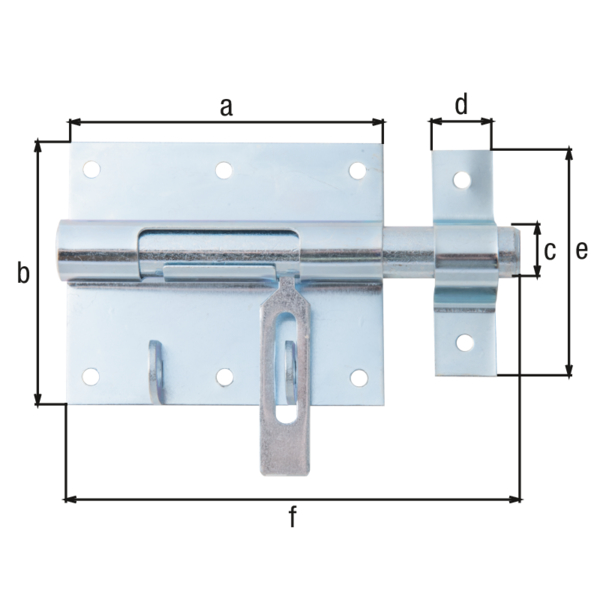

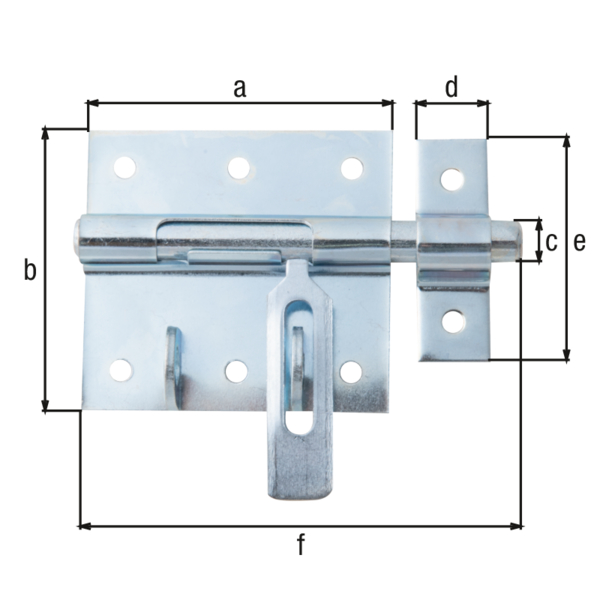

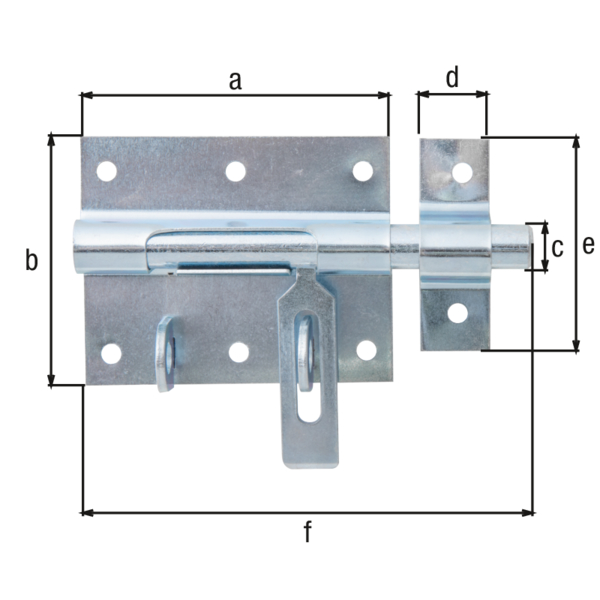

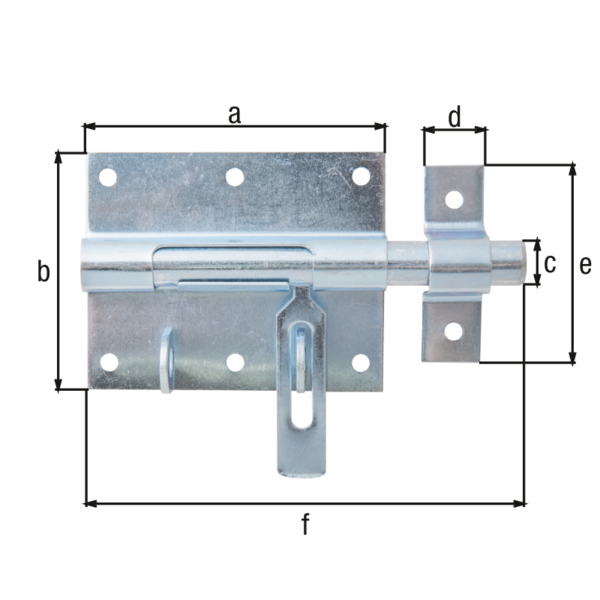

Dimension a:
80 mm
Dimension b:
64 mm
Dimension c-Ø:
11.5 mm
Dimension d:
18 mm
Dimension e:
57 mm
Dimension f:
116 mm
Extension length:
35 mm
Quantity x hole Ø:
8 x Ø5 mm
Material/surface:
raw steel, blue galvanised, with attached staple
Systems:
Bolts
Surface / Colour:
VERZ
Material:
Steel
Panel width:
64 mm
:
116 mm
Panel length:
80 mm
:
11.5 mm
Weight per UQ (kg):
0.172 kg
Contents Unit:
10 Piece
