• Locking tower bolt with flat handle, Material: raw steel, Surface: blue galvanised, with attached staple, Plate length: 95 mm, Plate width: 79 mm, Bolt-Ø: 15.5 mm, Loop width: 18 mm, Loop length: 67 mm, Total length: 135 mm, Extension length: 42 mm, No. of holes: 8, Hole: Ø5 mm
  • Locking tower bolt with flat handle, Material: raw steel, Surface: blue galvanised, with attached staple, Plate length: 95 mm, Plate width: 79 mm, Bolt-Ø: 15.5 mm, Loop width: 18 mm, Loop length: 67 mm, Total length: 135 mm, Extension length: 42 mm, No. of holes: 8, Hole: Ø5 mm

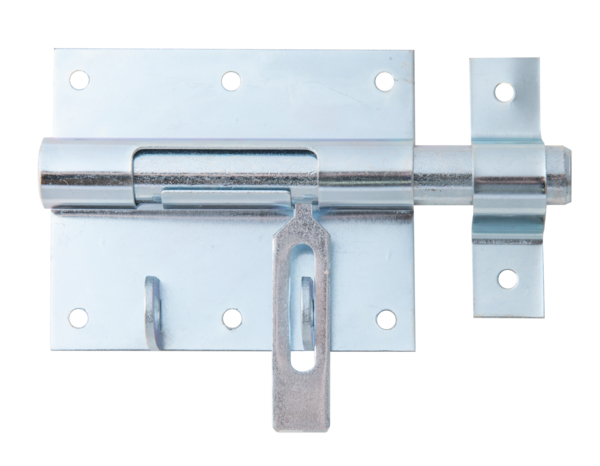

Locking tower bolt with flat handle

Art.-No. 137106
4 Variants

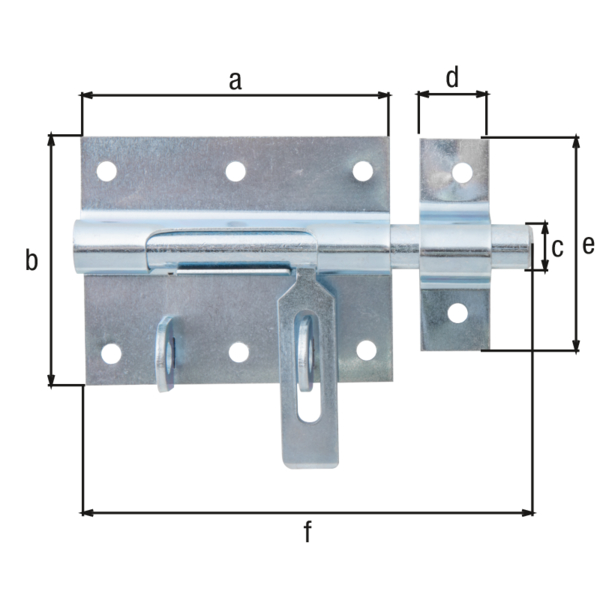

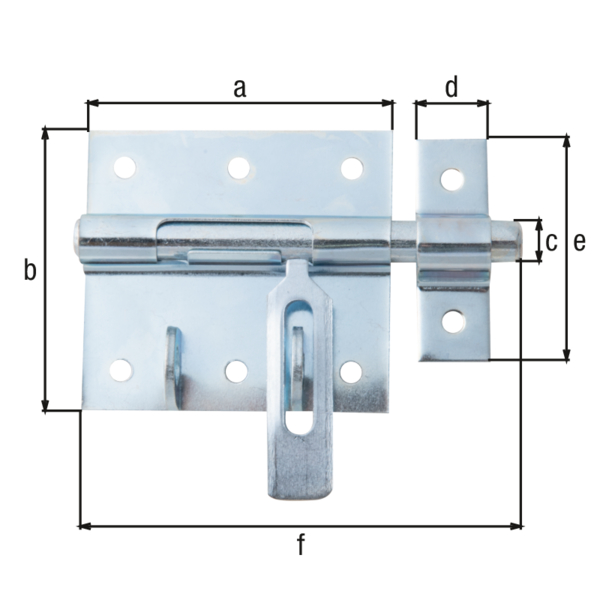

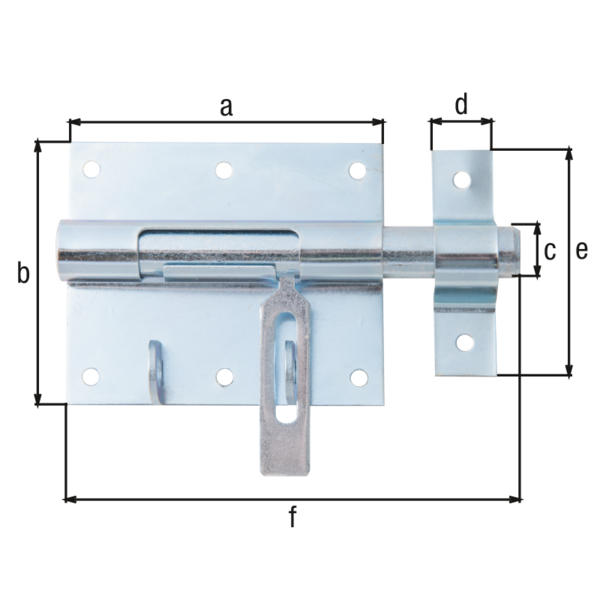

Dimension a:
95 mm
Dimension b:
79 mm
Dimension c-Ø:
15.5 mm
Dimension d:
18 mm
Dimension e:
67 mm
Dimension f:
135 mm
Extension length:
42 mm
Quantity x hole Ø:
8 x Ø5 mm
Material/surface:
raw steel, blue galvanised, with attached staple
Systems:
Bolts
Surface / Colour:
VERZ
Material:
Steel
Panel width:
79 mm
:
135 mm
Panel length:
95 mm
:
15.5 mm
Weight per UQ (kg):
0.306 kg
Contents Unit:
10 Piece
