• Locking tower bolt with round handle, with countersunk screw holes, Material: raw steel, Surface: galvanised, thick-film passivated, with attached staple, Plate length: 99 mm, Plate width: 68 mm, Bolt-Ø: 15 mm, Loop width: 20 mm, Loop length: 58 mm, Total length: 140 mm, No. of holes: 4 / 2 / 2, Hole: Ø4.4 / Ø5 / 5 x 5 mm
  • Locking tower bolt with round handle, with countersunk screw holes, Material: raw steel, Surface: galvanised, thick-film passivated, with attached staple, Plate length: 99 mm, Plate width: 68 mm, Bolt-Ø: 15 mm, Loop width: 20 mm, Loop length: 58 mm, Total length: 140 mm, No. of holes: 4 / 2 / 2, Hole: Ø4.4 / Ø5 / 5 x 5 mm

Locking tower bolt with round handle

with countersunk screw holes
Art.-No. 129026

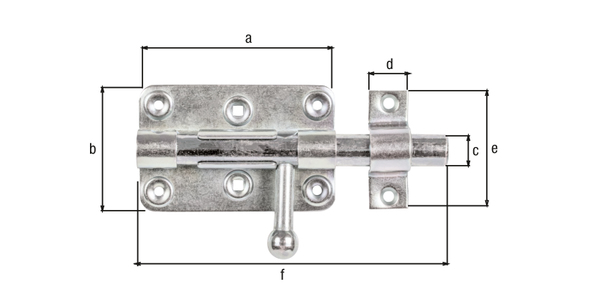

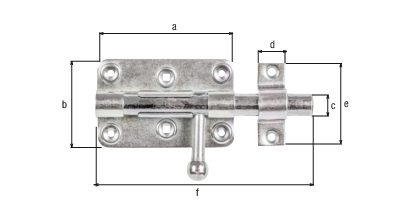

Dimension a:
99 mm
Dimension b:
68 mm
Dimension c-Ø:
15 mm
Dimension d:
20 mm
Dimension e:
58 mm
Dimension f:
140 mm
Extension length:
56 mm
Quantity x hole Ø:
4 x Ø4.4 mm
Quantity x hole Ø:
2 x Ø5 mm
Quantity x hole (LxW):
2 x ( 5 x 5 ) mm
Material/surface:
raw steel, galvanised, thick-film passivated, with attached staple
Systems:
Bolts
Surface / Colour:
VERZ
Material:
Steel
Panel width:
68 mm
:
140 mm
Panel length:
99 mm
:
15 mm
Weight per UQ (kg):
0.376 kg
Contents Unit:
6 Piece
  • with reinforced screw holes
