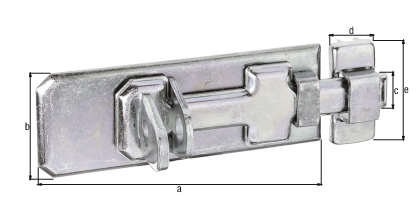

Security lock bolt with flat handle
with countersunk screw holes
Art.-No. 123055
- Dimension a:
- 80 mm
- Dimension b:
- 35 mm
- Dimension c:
- 13 mm
- Dimension d:
- 18 mm
- Dimension e:
- 41 mm
- Extension length:
- 20 mm
- Quantity x hole Ø:
- 6 x Ø4.5 mm
- Material/surface:
- raw steel, galvanised, thick-film passivated, type: straight, with attached staple
- Systems:
- Bolts
- Surface / Colour:
- VERZ
- Material:
- Steel
- Panel width:
- 35 mm
- Panel length:
- 80 mm
- Weight per UQ (kg):
- 0.083 kg
- Contents Unit:
- 10 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No.
123055
Dimension a
80 mm
Dimension b
35 mm
Dimension c
13 mm
Dimension d
18 mm
Article-No.
123062
Dimension a
100 mm
Dimension b
40 mm
Dimension c
15 mm
Dimension d
20 mm
Article-No.
123079
Dimension a
120 mm
Dimension b
45 mm
Dimension c
17 mm
Dimension d
22 mm
Article-No.
123086
Dimension a
140 mm
Dimension b
55 mm
Dimension c
20 mm
Dimension d
24 mm
- When the slider is pushed forward, the countersunk screw holes of the locking plate are covered and the screws cannot be removed. The staple is secured by the drive-in plate which is hidden by the slider that is pushed forward.
