Tower drop bolt

with countersunk screw holes
Art.-No. 124656

raw steel, galvanised, thick-film passivated, with attached staple

2 Variants

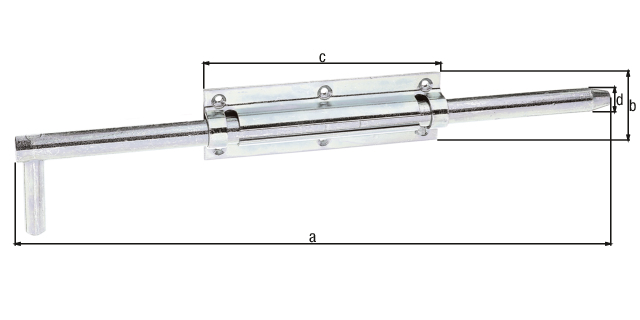

Dimension a:
400 mm
Dimension b:
160 mm
Dimension c:
52 mm
Dimension d-Ø:
18 mm
Dimension e:
30 mm
Dimension f:
57 mm
Extension length:
120 mm
Quantity x hole Ø:
8 x Ø5 mm
Material/surface:
raw steel, galvanised, thick-film passivated, with attached staple
Systems:
Bolts
Surface / Colour:
VERZ
Material:
Steel
Panel width:
52 mm
Length:
400 mm
Panel length:
160 mm
:
18 mm
Weight per UQ (kg):
1.2 kg
Contents Unit:
5 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d-Ø
Action
Article-No. 124656
Dimension a 400 mm
Dimension b 160 mm
Dimension c 52 mm
Dimension d-Ø 18 mm
Article-No. 124663
Dimension a 600 mm
Dimension b 210 mm
Dimension c 52 mm
Dimension d-Ø 18 mm
