• Tower drop bolt, with countersunk screw holes, Material: raw steel, Surface: galvanised, thick-film passivated, with attached staple, Length: 400 mm, Plate length: 90 mm, Plate width: 60 mm, Bolt-Ø: 16 mm, Loop width: 30 mm, Loop length: 57 mm, No. of holes: 8 / 2, Hole: Ø6.5 / Ø5 mm
  • Tower drop bolt, with countersunk screw holes, Material: raw steel, Surface: galvanised, thick-film passivated, with attached staple, Length: 400 mm, Plate length: 90 mm, Plate width: 60 mm, Bolt-Ø: 16 mm, Loop width: 30 mm, Loop length: 57 mm, No. of holes: 8 / 2, Hole: Ø6.5 / Ø5 mm

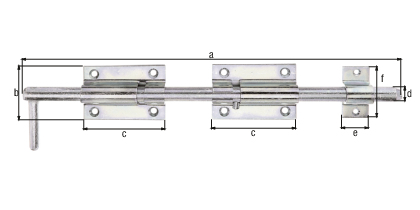

Tower drop bolt

with countersunk screw holes
Art.-No. 128500

raw steel, galvanised, thick-film passivated, with attached staple

2 Variants
Dimension a:
400 mm
Dimension b:
90 mm
Dimension c:
60 mm
Dimension d-Ø:
16 mm
Dimension e:
30 mm
Dimension f:
57 mm
Extension length:
50 - 105 mm
Quantity x hole Ø:
8 x Ø6.5 mm
Quantity x hole Ø:
2 x Ø5 mm
Material/surface:
raw steel, galvanised, thick-film passivated, with attached staple
Systems:
Bolts
Surface / Colour:
VERZ
Material:
Steel
Panel width:
60 mm
Length:
400 mm
Panel length:
90 mm
:
16 mm
Weight per UQ (kg):
1.1 kg
Contents Unit:
5 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d-Ø
Action
Article-No. 128500
Dimension a 400 mm
Dimension b 90 mm
Dimension c 60 mm
Dimension d-Ø 16 mm
Article-No. 128517
Dimension a 600 mm
Dimension b 90 mm
Dimension c 60 mm
Dimension d-Ø 16 mm
  • adjustable extension length
