• Tower drop bolt, Material: raw steel, Surface: blue galvanised, with attached staple, Length: 200 mm, Plate length: 80 mm, Plate width: 66 mm, Bolt-Ø: 11.5 mm, Loop width: 18 mm, Loop length: 56 mm, Extension length: 33 mm, No. of holes: 8, Hole: Ø5 mm
  • Tower drop bolt, Material: raw steel, Surface: blue galvanised, with attached staple, Length: 200 mm, Plate length: 80 mm, Plate width: 66 mm, Bolt-Ø: 11.5 mm, Loop width: 18 mm, Loop length: 56 mm, Extension length: 33 mm, No. of holes: 8, Hole: Ø5 mm

Tower drop bolt

Art.-No. 137229
4 Variants

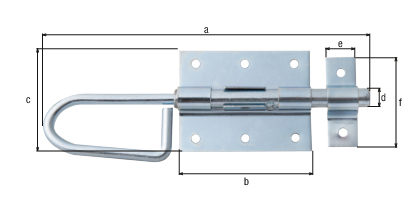

Dimension a:
200 mm
Dimension b:
80 mm
Dimension c:
66 mm
Dimension d-Ø:
11,5 mm
Dimension e:
18 mm
Dimension f:
56 mm
Extension length:
33 mm
Quantity x hole Ø:
8 x Ø5 mm
Material/surface:
raw steel, blue galvanised, with attached staple
Systems:
Bolts
Surface / Colour:
VERZ
Material:
Steel
Panel width:
66 mm
Length:
200 mm
Panel length:
80 mm
:
11.5 mm
Weight per UQ (kg):
0.205 kg
Contents Unit:
10 Piece
