• Tower drop bolt, Material: raw steel, Surface: blue galvanised, with attached staple, Length: 400 mm, Plate length: 90 mm, Plate width: 67 mm, Bolt-Ø: 13.5 mm, Loop width: 18 mm, Loop length: 61 mm, Extension length: 41 mm, No. of holes: 8, Hole: Ø5 mm
  • Tower drop bolt, Material: raw steel, Surface: blue galvanised, with attached staple, Length: 400 mm, Plate length: 90 mm, Plate width: 67 mm, Bolt-Ø: 13.5 mm, Loop width: 18 mm, Loop length: 61 mm, Extension length: 41 mm, No. of holes: 8, Hole: Ø5 mm

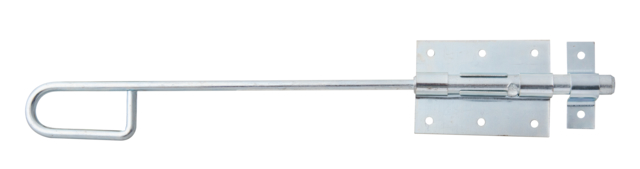

Tower drop bolt

Art.-No. 137250
4 Variants
Dimension a:
400 mm
Dimension b:
90 mm
Dimension c:
67 mm
Dimension d-Ø:
13,5 mm
Dimension e:
18 mm
Dimension f:
61 mm
Extension length:
41 mm
Quantity x hole Ø:
8 x Ø5 mm
Material/surface:
raw steel, blue galvanised, with attached staple
Systems:
Bolts
Surface / Colour:
VERZ
Material:
Steel
Panel width:
67 mm
Length:
400 mm
Panel length:
90 mm
:
13.5 mm
Weight per UQ (kg):
0.324 kg
Contents Unit:
10 Piece
