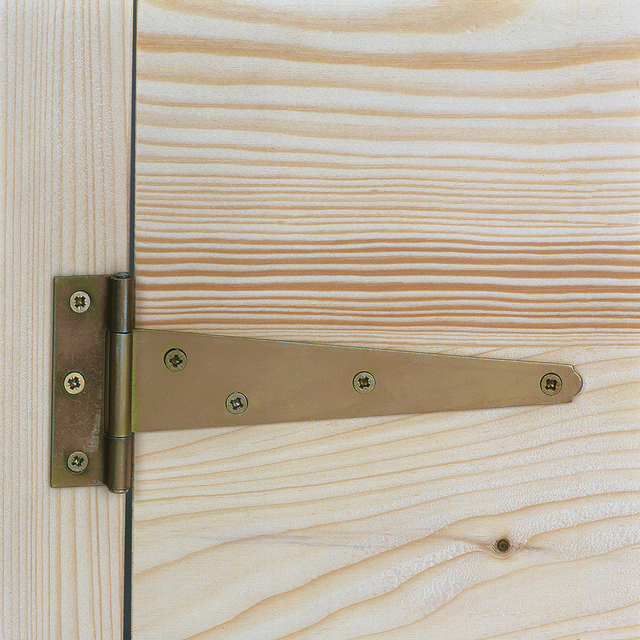

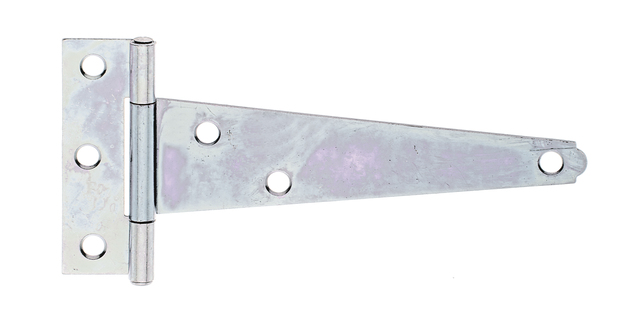

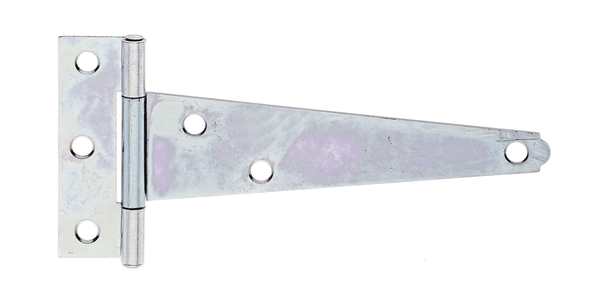

Box hinge
with countersunk screw holes
Art.-No. 347321
raw steel, galvanised, thick-film passivated
- Dimension a:
- 125 mm
- Dimension b:
- 22.5 mm
- Dimension c:
- 70 mm
- Dimension d:
- 33.5 mm
- Material thickness:
- 1.5 mm
- Quantity x hole Ø:
- 6 x Ø5.5 mm
- Material/surface:
- raw steel, galvanised, thick-film passivated
- Surface / Colour:
- VERZ
- Material:
- Steel
- Belt length:
- 125 mm
- Type:
- rolled
- Weight per UQ (kg):
- 0.067 kg
- Contents Unit:
- 25 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No.
347314
Dimension a
100 mm
Dimension b
20 mm
Dimension c
60 mm
Dimension d
29 mm
Article-No.
347321
Dimension a
125 mm
Dimension b
22.5 mm
Dimension c
70 mm
Dimension d
33.5 mm
Article-No.
347338
Dimension a
150 mm
Dimension b
22.5 mm
Dimension c
70 mm
Dimension d
33 mm
Article-No.
347345
Dimension a
200 mm
Dimension b
32 mm
Dimension c
90 mm
Dimension d
43.5 mm
- Suitable fasteners can be found in the range “Screws and accessories”.
