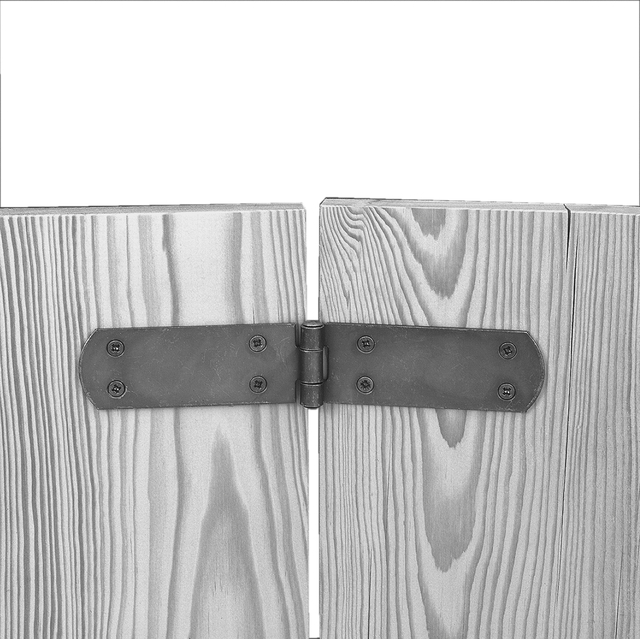

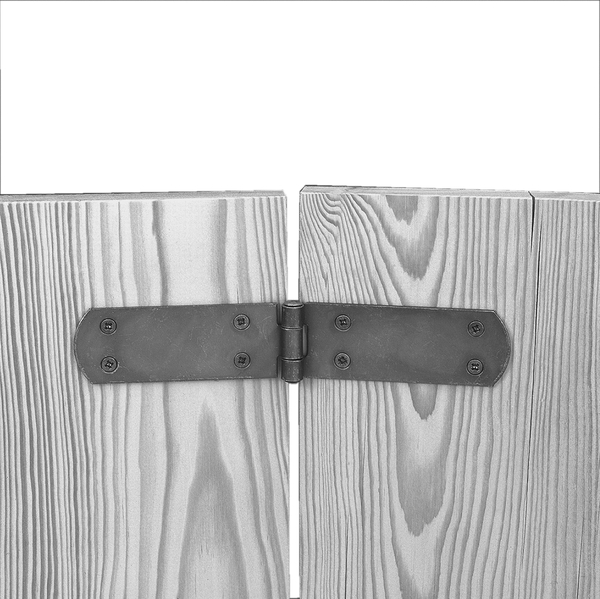

Box hinge
with countersunk screw holes
Art.-No. 315580
- Dimension a:
- 156 mm
- Dimension b:
- 35 mm
- Material thickness:
- 2 mm
- Quantity x hole Ø:
- 8 x Ø5.5 mm
- Material/surface:
- raw steel, galvanised, thick-film passivated
- Surface / Colour:
- VERZ
- Material:
- Steel
- Length:
- 156 mm
- Width:
- 35 mm
- Weight per UQ (kg):
- 0.092 kg
- Contents Unit:
- 20 Piece
Article-No.
Dimension a
Dimension b
Material thickness
Quantity x hole Ø
Action
Article-No.
315542
Dimension a
135 mm
Dimension b
35 mm
Material thickness
2 mm
Quantity x hole Ø
8 x Ø5.5 mm
Article-No.
315580
Dimension a
156 mm
Dimension b
35 mm
Material thickness
2 mm
Quantity x hole Ø
8 x Ø5.5 mm
Article-No.
315627
Dimension a
175 mm
Dimension b
35 mm
Material thickness
2 mm
Quantity x hole Ø
8 x Ø5.5 mm
Article-No.
315665
Dimension a
195 mm
Dimension b
35 mm
Material thickness
2 mm
Quantity x hole Ø
8 x Ø5.5 mm
Article-No.
315702
Dimension a
250 mm
Dimension b
40 mm
Material thickness
2.5 mm
Quantity x hole Ø
8 x Ø5.5 mm
Article-No.
315740
Dimension a
300 mm
Dimension b
40 mm
Material thickness
2.5 mm
Quantity x hole Ø
10 x Ø5.5 mm
Article-No.
315788
Dimension a
400 mm
Dimension b
40 mm
Material thickness
3 mm
Quantity x hole Ø
10 x Ø6 mm
