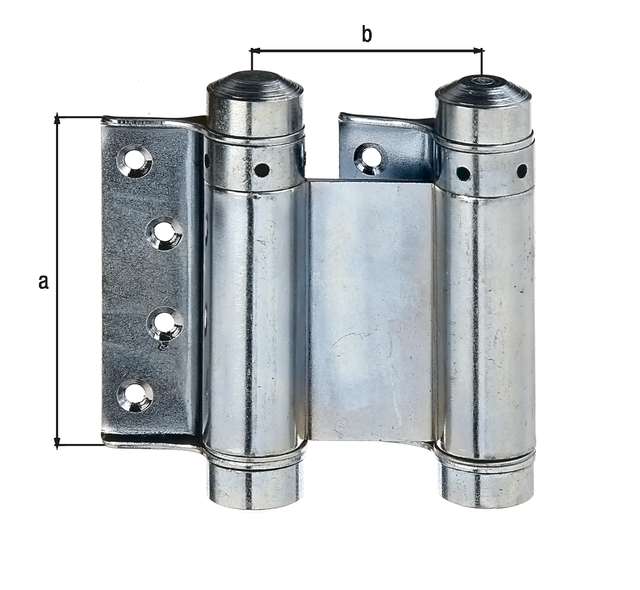

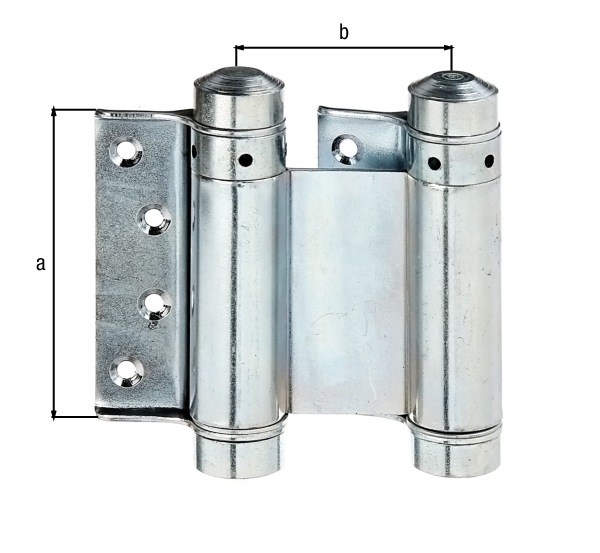

Swinging door hinge

with countersunk screw holes
Art.-No. 411664

raw steel, blue galvanised

Dimension a:
76 mm
Dimension b:
52 mm
Dimension c:
29 mm
Dimension d:
34 mm
For:
18 - 25 mm
Quantity x hole Ø:
8 x Ø4.3 mm
Material/surface:
raw steel, blue galvanised
Surface / Colour:
VERZ
Material:
Steel
Width:
29 mm
Height:
76 mm
Weight per UQ (kg):
0.525 kg
Contents per PU:
1 Piece / Card
Contents Unit:
5 Card
  • with adjusting pin and adjusting rivet
  • Maximum leaf weight when used in pairs (2 pcs. per leaf) and maximum leaf width of 600 mm: 15 kg
