• Ground screw for tubes, suitable for all supporting tubes from Ø25 to 65 mm, Material: raw steel, Surface: hot-dip galvanised, Total length: 560 mm, 15-year warranty against rusting through
  • Ground screw for tubes, suitable for all supporting tubes from Ø25 to 65 mm, Material: raw steel, Surface: hot-dip galvanised, Total length: 560 mm, 15-year warranty against rusting through

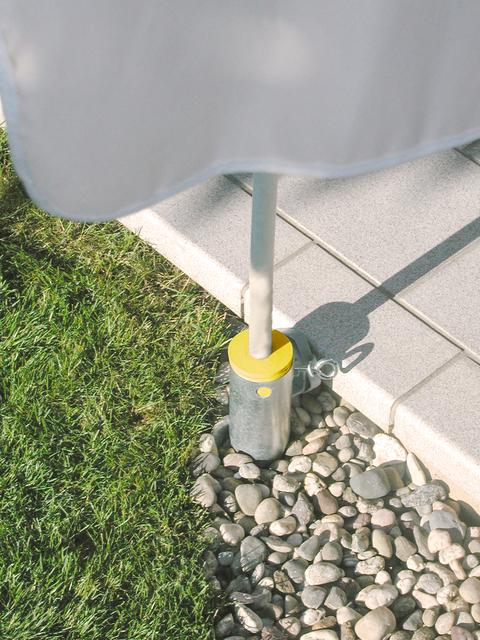

Ground screw for tubes

suitable for all supporting tubes from Ø25 to 65 mm
Art.-No. 610647

raw steel, hot-dip galvanised

2 Variants
Dimension a:
560 mm
Fastening type:
ZEINSCHR
:
15 years
Material/surface:
raw steel, hot-dip galvanised
Surface / Colour:
FVZ
Material:
Steel
:
560 mm
Weight per UQ (kg):
1.400 kg
Contents Unit:
100 Piece
Article-No.
Dimension a
Fastening type
Material/surface
Action
Article-No. 610630
Dimension a 560 mm
Fastening type ZEINSCHR
15 years
Material/surface raw steel, hot-dip galvanised
Article-No. 610647
Dimension a 560 mm
Fastening type ZEINSCHR
15 years
Material/surface raw steel, hot-dip galvanised
  • Able to be used with up to five plastic reducing sleeves: Without reducing sleeve: For Ø 60 to 65 mm tubing, with the first reducing sleeve: For Ø 55 mm tubing, with the second reducing sleeve: For Ø 50 mm tubing, with the third reducing sleeve: For Ø 40 mm tubing to 42 mm, with the fourth reducing sleeve: For Ø38 mm tubing, with the fifth reducing sleeve: For Ø25 mm tubing
  • Drive-in tool, 440mm included.
