• DURAVIS® Bolt lock with round handle, with countersunk screw holes, Material: steel, blue galvanised, Surface: pearl beige duplex-coated RAL 1035, Plate length: 112 mm, Plate width: 72 mm, Bolt-Ø: 16 mm, Loop width: 36 mm, No. of holes: 4 / 2 / 2, Hole: Ø5 / 5 x 5 / Ø5 mm, 20-year warranty against rusting through, CutCase
  • DURAVIS® Bolt lock with round handle, with countersunk screw holes, Material: steel, blue galvanised, Surface: pearl beige duplex-coated RAL 1035, Plate length: 112 mm, Plate width: 72 mm, Bolt-Ø: 16 mm, Loop width: 36 mm, No. of holes: 4 / 2 / 2, Hole: Ø5 / 5 x 5 / Ø5 mm, 20-year warranty against rusting through, CutCase

DURAVIS® Bolt lock with round handle

with countersunk screw holes
Art.-No. 300012

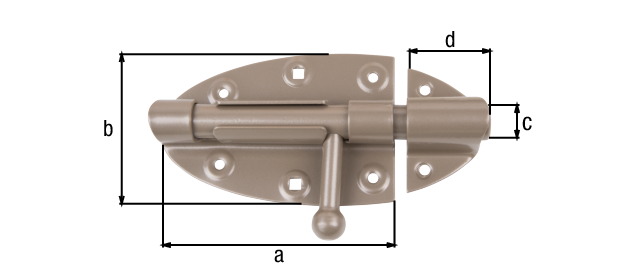

Dimension a:
112 mm
Dimension b:
72 mm
Dimension c-Ø:
16 mm
Dimension d:
36 mm
Fastening type:
for screwing on
:
20 years
Quantity x hole Ø:
4 x Ø5 mm
Quantity x hole (LxW):
2 x ( 5 x 5 ) mm
Quantity x hole Ø:
2 x Ø5 mm
Material/surface:
steel, blue galvanised, pearl beige duplex-coated RAL 1035
Systems:
Bolts
Surface / Colour:
PERLB
Material:
Steel
Panel width:
72 mm
Panel length:
112 mm
:
16 mm
Weight per UQ (kg):
0.406 kg
Contents Unit:
4 Piece
  • with reinforced screw holes
