• DURAVIS® Flat steel concrete anchor, Material: steel, sendzimir galvanised, Surface: pearl beige duplex-coated RAL 1035, for setting in concrete, with CE marking in accordance with ETA-08/0165, Depth: 205 mm, Height: 40 mm, Width: 40 mm, Material thickness: 2.00 mm, No. of holes: 18, Hole: Ø5 mm, 20-year warranty against rusting through, CutCase
  • DURAVIS® Flat steel concrete anchor, Material: steel, sendzimir galvanised, Surface: pearl beige duplex-coated RAL 1035, for setting in concrete, with CE marking in accordance with ETA-08/0165, Depth: 205 mm, Height: 40 mm, Width: 40 mm, Material thickness: 2.00 mm, No. of holes: 18, Hole: Ø5 mm, 20-year warranty against rusting through, CutCase

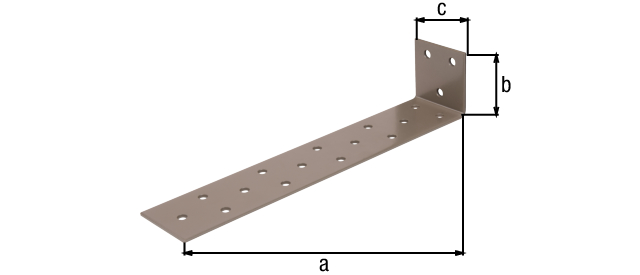

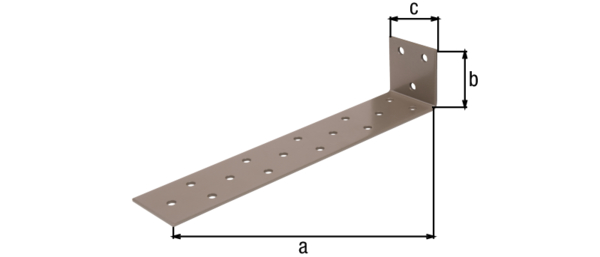

DURAVIS® Flat steel concrete anchor

Art.-No. 300302
Dimension a:
205 mm
Dimension b:
40 mm
Dimension c:
40 mm
Fastening type:
for setting in concrete
Material thickness:
2 mm
:
20 years
Quantity x hole Ø:
18 x Ø5 mm
Material/surface:
steel, sendzimir galvanised, pearl beige duplex-coated RAL 1035, for setting in concrete, with CE marking in accordance with ETA-08/0165
Surface / Colour:
PERLB
Material:
Steel
Approval:
Europ.techn.app. ETA-08/0165
Width:
40 mm
Height:
40 mm
Depth:
205 mm
Weight per UQ (kg):
0.147 kg
Contents Unit:
10 Piece
