• DURAVIS® Hook on plate, DI, with countersunk screw holes, Material: steel, blue galvanised, Surface: pearl beige duplex-coated RAL 1035, Size back set-Ø: 16 mm, Distance pin - plate: 13 mm, Plate height: 115 mm, Plate width: 40 mm, Length of pin: 45 mm, Material thickness: 4.50 mm, No. of holes: 4, Hole: Ø7.2 mm, 20-year warranty against rusting through
  • DURAVIS® Hook on plate, DI, with countersunk screw holes, Material: steel, blue galvanised, Surface: pearl beige duplex-coated RAL 1035, Size back set-Ø: 16 mm, Distance pin - plate: 13 mm, Plate height: 115 mm, Plate width: 40 mm, Length of pin: 45 mm, Material thickness: 4.50 mm, No. of holes: 4, Hole: Ø7.2 mm, 20-year warranty against rusting through

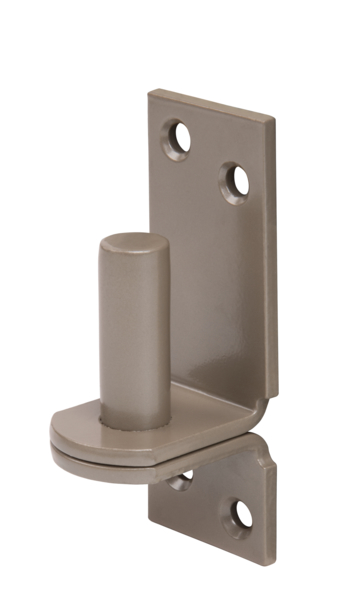

DURAVIS® Hook on plate, DI

with countersunk screw holes
Art.-No. 300104
2 Variants
Dimension a-Ø:
16 mm
Dimension b:
13 mm
Dimension c:
115 mm
Dimension d:
40 mm
Dimension e:
45 mm
Fastening type:
for screwing on
Material thickness:
4.5 mm
:
20 years
Quantity x hole Ø:
4 x Ø7.2 mm
Material/surface:
steel, blue galvanised, pearl beige duplex-coated RAL 1035
Surface / Colour:
PERLB
Material:
Steel
Backset-Ø:
16 mm
Panel width:
40 mm
Weight per UQ (kg):
0.380 kg
Contents Unit:
6 Piece
Article-No.
Dimension a-Ø
Dimension b
Dimension c
Dimension d
Action
Article-No. 300098
Dimension a-Ø 13 mm
Dimension b 11 mm
Dimension c 100 mm
Dimension d 35 mm
Article-No. 300104
Dimension a-Ø 16 mm
Dimension b 13 mm
Dimension c 115 mm
Dimension d 40 mm
  • Suitable fasteners can be found in the range “Screws and accessories”.
