• DURAVIS® Strap hinge, with riveted pin, Material: steel, blue galvanised, Surface: pearl beige duplex-coated RAL 1035, Belt length: 202 mm, Hinge width: 77 mm, Hinge length: 48 mm, Belt width: 35 mm, Type: light, Material thickness: 2.50 mm, No. of holes: 5 / 1 / 1, Hole: Ø6 / Ø9 / 7 x 7 mm, 20-year warranty against rusting through, CutCase
  • DURAVIS® Strap hinge, with riveted pin, Material: steel, blue galvanised, Surface: pearl beige duplex-coated RAL 1035, Belt length: 202 mm, Hinge width: 77 mm, Hinge length: 48 mm, Belt width: 35 mm, Type: light, Material thickness: 2.50 mm, No. of holes: 5 / 1 / 1, Hole: Ø6 / Ø9 / 7 x 7 mm, 20-year warranty against rusting through, CutCase

DURAVIS® Strap hinge

with riveted pin
Art.-No. 300197
2 Variants

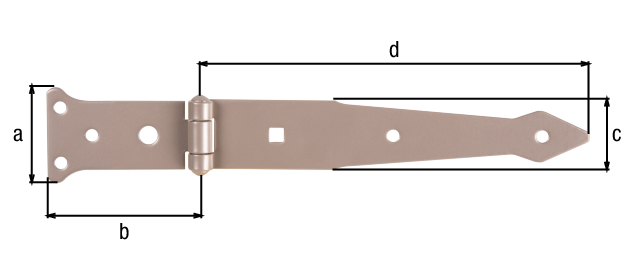

Dimension a:
202 mm
Dimension b:
77 mm
Dimension c:
48 mm
Dimension d:
35 mm
Fastening type:
for screwing on
Material thickness:
2.5 mm
:
20 years
Quantity x hole Ø:
5 x Ø6 mm
Quantity x hole Ø:
1 x Ø9 mm
Quantity x hole (LxW):
1 x ( 7 x 7 ) mm
Material/surface:
steel, blue galvanised, pearl beige duplex-coated RAL 1035
Surface / Colour:
PERLB
Material:
Steel
Belt length:
202 mm
Type:
light
Weight per UQ (kg):
0.182 kg
Contents Unit:
6 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No. 300197
Dimension a 202 mm
Dimension b 77 mm
Dimension c 48 mm
Dimension d 35 mm
Article-No. 300203
Dimension a 302 mm
Dimension b 77 mm
Dimension c 48 mm
Dimension d 35 mm
  • Suitable fasteners can be found in the range “Screws and accessories”.
