• DURAVIS® Tee hinge, with riveted pin, Material: steel, blue galvanised, Surface: pearl beige duplex-coated RAL 1035, Belt length: 591 mm, Hinge width: 59 mm, Hinge length: 103 mm, Belt width: 40 mm, Material thickness: 3.50 mm, No. of holes: 9 / 2, Hole: Ø6.5 / 9 x 9 mm, 20-year warranty against rusting through
  • DURAVIS® Tee hinge, with riveted pin, Material: steel, blue galvanised, Surface: pearl beige duplex-coated RAL 1035, Belt length: 591 mm, Hinge width: 59 mm, Hinge length: 103 mm, Belt width: 40 mm, Material thickness: 3.50 mm, No. of holes: 9 / 2, Hole: Ø6.5 / 9 x 9 mm, 20-year warranty against rusting through

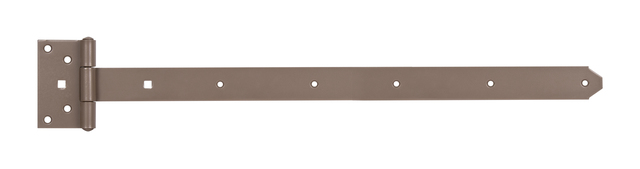

DURAVIS® Tee hinge

with riveted pin
Art.-No. 300159
3 Variants
Dimension a:
591 mm
Dimension b:
59 mm
Dimension c:
103 mm
Dimension d:
40 mm
Fastening type:
for screwing on
Material thickness:
3.5 mm
:
20 years
Quantity x hole Ø:
9 x Ø6.5 mm
Quantity x hole (LxW):
2 x ( 9 x 9 ) mm
Material/surface:
steel, blue galvanised, pearl beige duplex-coated RAL 1035
Surface / Colour:
PERLB
Material:
Steel
Belt length:
591 mm
Weight per UQ (kg):
1.010 kg
Contents Unit:
6 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No. 300135
Dimension a 192 mm
Dimension b 45 mm
Dimension c 90 mm
Dimension d 34 mm
Article-No. 300142
Dimension a 391 mm
Dimension b 59 mm
Dimension c 103 mm
Dimension d 40 mm
Article-No. 300159
Dimension a 591 mm
Dimension b 59 mm
Dimension c 103 mm
Dimension d 40 mm
  • Suitable fasteners can be found in the range “Screws and accessories”.
