• DURAVIS® Fence bracket, L-shape, Material: steel, blue galvanised, Surface: pearl beige duplex-coated RAL 1035, Total height: 83 mm, Width: 30 mm, Depth: 32 mm, Height: 38 mm, Wooden thread Ø: 8 x 45 mm, Drive: hexagon head (star) size 30, Material thickness: 2.00 mm, No. of holes: 2, Hole: Ø5 mm, 20-year warranty against rusting through
  • DURAVIS® Fence bracket, L-shape, Material: steel, blue galvanised, Surface: pearl beige duplex-coated RAL 1035, Total height: 83 mm, Width: 30 mm, Depth: 32 mm, Height: 38 mm, Wooden thread Ø: 8 x 45 mm, Drive: hexagon head (star) size 30, Material thickness: 2.00 mm, No. of holes: 2, Hole: Ø5 mm, 20-year warranty against rusting through

DURAVIS® Fence bracket, L-shape

Art.-No. 300050

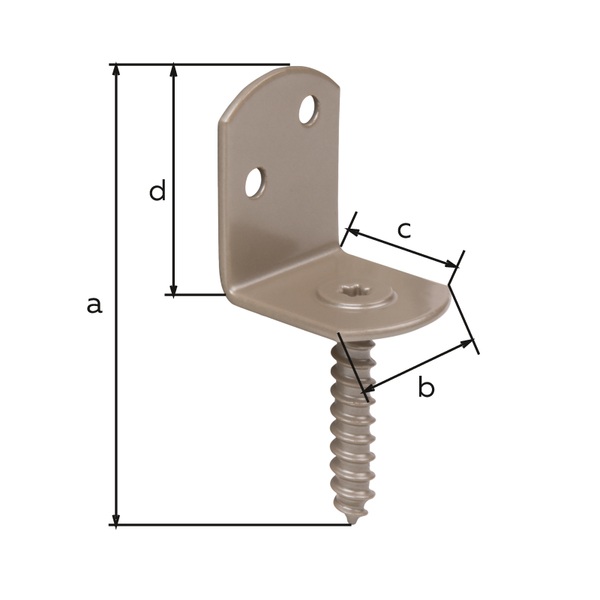

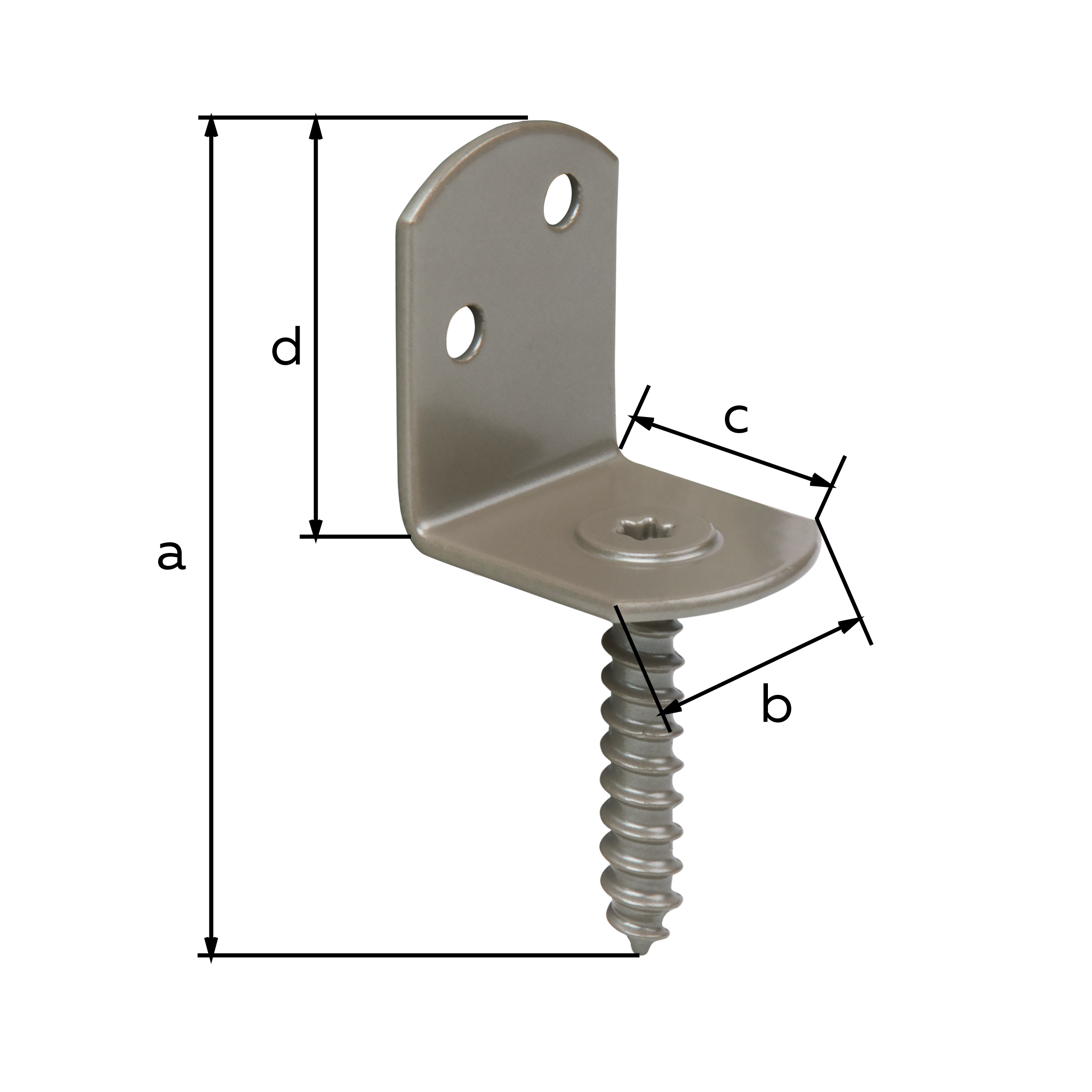

Dimension a:
83 mm
Dimension b:
30 mm
Dimension c:
32 mm
Dimension d:
38 mm
Wooden thread Ø:
8 x 45 mm
Drive:
hexagon head (star) size 30
Fastening type:
for screwing on
Material thickness:
2 mm
:
20 years
Quantity x hole Ø:
2 x Ø5 mm
Material/surface:
steel, blue galvanised, pearl beige duplex-coated RAL 1035
Surface / Colour:
PERLB
Material:
Steel
Width:
30 mm
Height:
38 mm
Depth:
32 mm
:
83 mm
Weight per UQ (kg):
0.048 kg
Contents Unit:
50 Piece
  • with wood screw
  • Holes with Ø 6 mm must be predrilled in the timber post before the fence bracket can be installed.
  • For easy fixation and adjustment use our drive-in tool for fence bracket no. 208790
