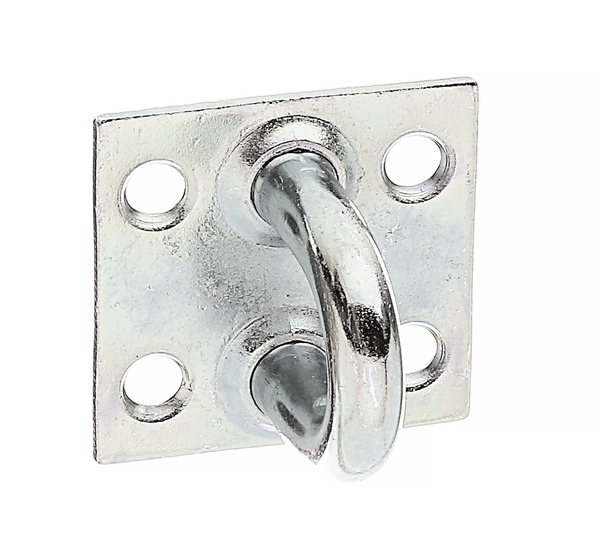

Eye plate
Art.-No. 348502
raw steel, galvanised, thick-film passivated

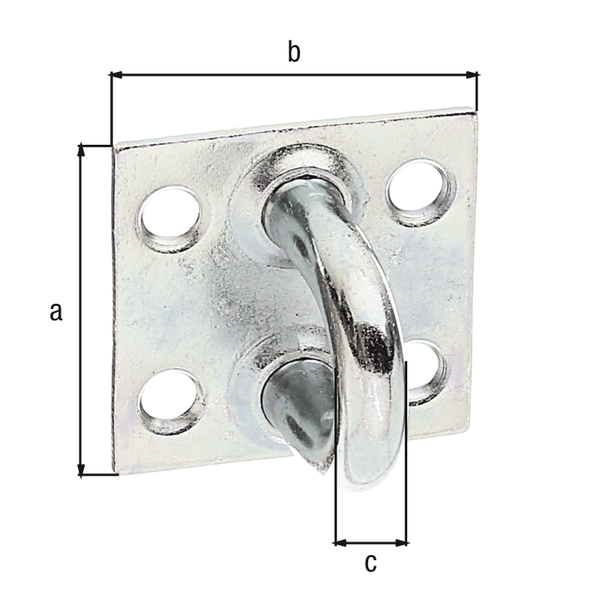

- Dimension a:
- 37 mm
- Dimension b:
- 37 mm
- Dimension c-Ø:
- 7 mm
- Clip width:
- 27.5 mm
- Clip height:
- 27 mm
- Material thickness:
- 2 mm
- Quantity x hole Ø:
- 4 x Ø5.5 mm
- Material/surface:
- raw steel, galvanised, thick-film passivated
- Material:
- Steel
- Panel width:
- 37 mm
- Panel length:
- 37 mm
- Weight per UQ (kg):
- 0.038 kg
- Contents Unit:
- 25 Piece
Article-No.
Dimension a
Dimension b
Dimension c-Ø
Clip width
Action
Article-No.
348502
Dimension a
37 mm
Dimension b
37 mm
Dimension c-Ø
7 mm
Clip width
27.5 mm
Article-No.

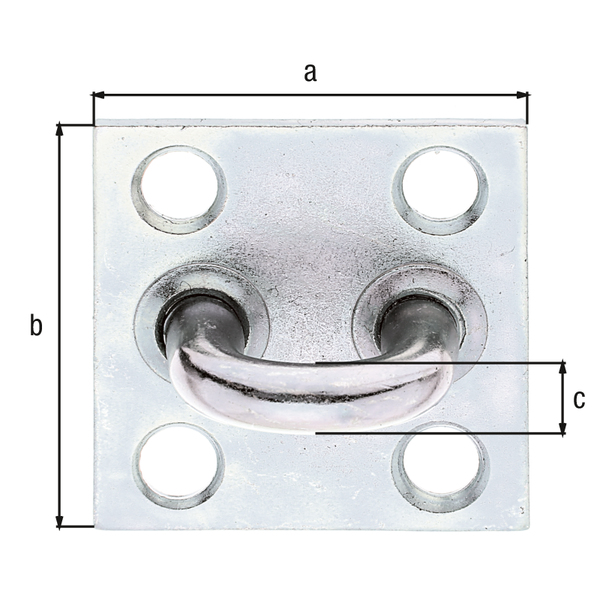

348519
Dimension a
50 mm
Dimension b
50 mm
Dimension c-Ø
8 mm
Clip width
32 mm
- no. 348519 for hasp no. 348373
- no. 348502 for hasps nos. 315986, 316020, 316266, 316389, 348359, 348366
