• Hasp with hook, Material: raw steel, Surface: galvanised, thick-film passivated, Length of top latch: 250 mm, Width: 30 mm, Distance centre of slot - end of hasp: 112 mm, Material thickness: 3.00 mm, No. of holes: 1 / 3, Hole: 10 x 40 / Ø5.5 mm
  • Hasp with hook, Material: raw steel, Surface: galvanised, thick-film passivated, Length of top latch: 250 mm, Width: 30 mm, Distance centre of slot - end of hasp: 112 mm, Material thickness: 3.00 mm, No. of holes: 1 / 3, Hole: 10 x 40 / Ø5.5 mm

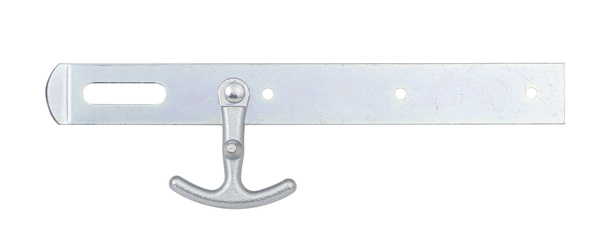

Hasp with hook

Art.-No. 316389

raw steel, galvanised, thick-film passivated

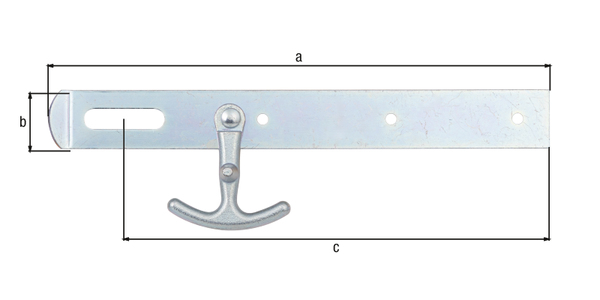

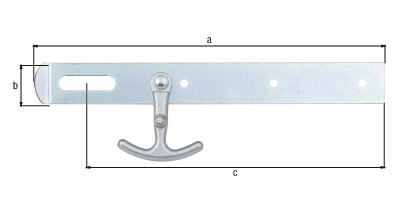

Dimension a:
250 mm
Dimension b:
30 mm
Dimension c:
112 mm
Material thickness:
3 mm
Quantity x hole (LxW):
1 x ( 10 x 40 ) mm
Quantity x hole Ø:
3 x Ø5.5 mm
Material/surface:
raw steel, galvanised, thick-film passivated
Material:
Steel
Width:
30 mm
Weight per UQ (kg):
0.27 kg
Contents Unit:
10 Piece
  • applicable DIN left and right
