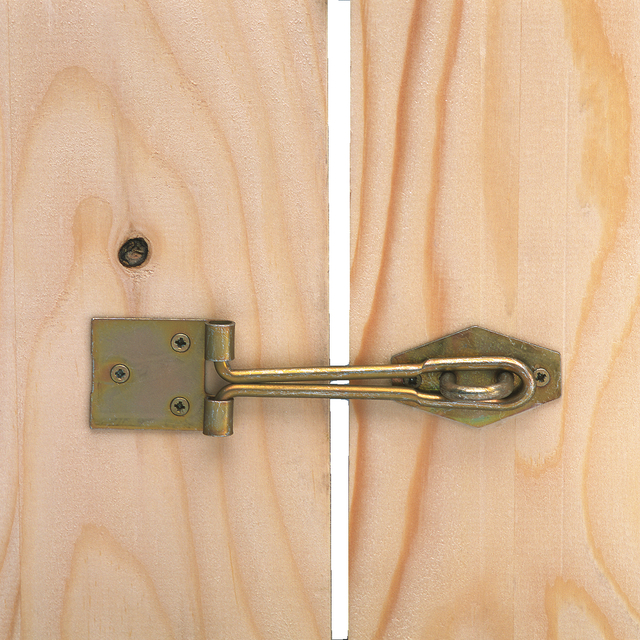

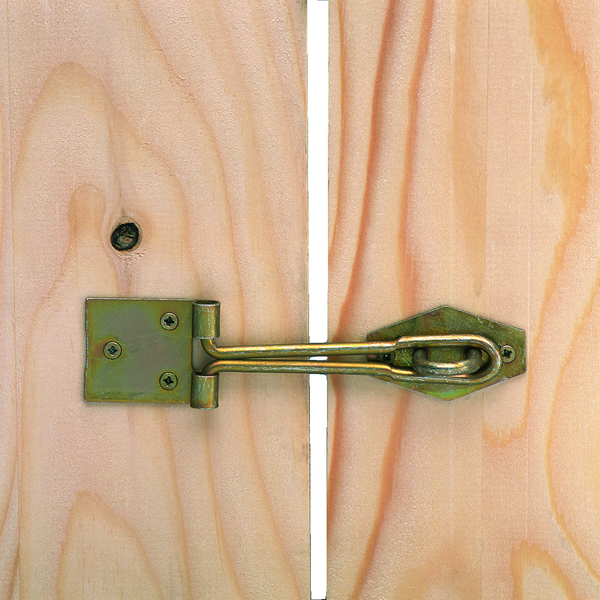

Hasp with staple, made of rolled wire
with countersunk screw holes
Art.-No. 348229
raw steel, galvanised, thick-film passivated
- Dimension a:
- 120 mm
- Dimension b:
- 31.5 mm
- Dimension c:
- 35 mm
- Dimension d:
- 67 mm
- Dimension e:
- 43 mm
- Quantity x hole Ø:
- 3 x Ø4.4 mm
- Quantity x hole Ø:
- 2 x Ø3.6 mm
- Material/surface:
- raw steel, galvanised, thick-film passivated
- Material:
- Steel
- Weight per UQ (kg):
- 0.045 kg
- Padlock Ø:
- 10
- Contents Unit:
- 10 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No.
348205
Dimension a
80 mm
Dimension b
26 mm
Dimension c
30 mm
Dimension d
35 mm
Article-No.
348212
Dimension a
93.5 mm
Dimension b
31.5 mm
Dimension c
33.5 mm
Dimension d
42 mm
Article-No.
348229
Dimension a
120 mm
Dimension b
31.5 mm
Dimension c
35 mm
Dimension d
67 mm
Article-No.
348267
Dimension a
140 mm
Dimension b
36 mm
Dimension c
45 mm
Dimension d
73 mm
- with eye plate
- compatible with padlocks with max. size, according to table
