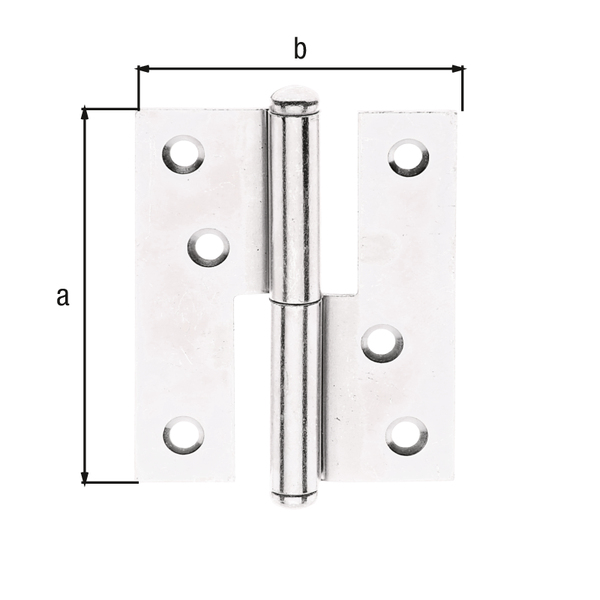

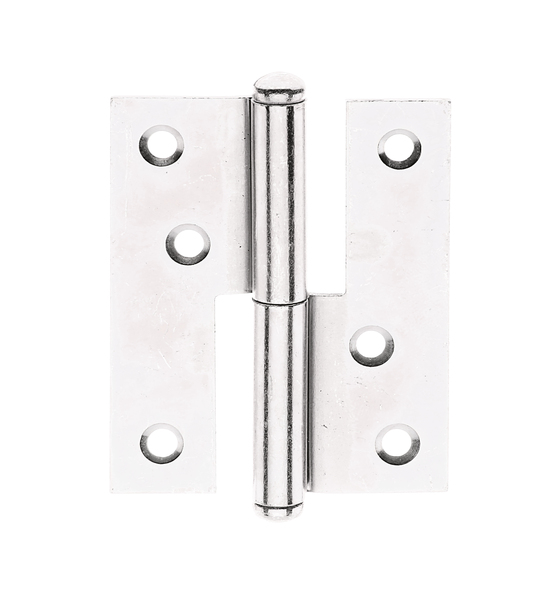

Lift-off hinge
with countersunk screw holes
Art.-No. 333751
- Dimension a:
- 80 mm
- Dimension b:
- 65 mm
- Material thickness:
- 1.8 mm
- Quantity x hole Ø:
- 6 x Ø5 mm
- Material/surface:
- raw steel, sendzimir galvanised, left
- Surface / Colour:
- VERZ
- Material:
- Steel
- Length:
- 80 mm
- Width:
- 65 mm
- Weight per UQ (kg):
- 0.11 kg
- Contents Unit:
- 20 Piece
Article-No.
Dimension a
Dimension b
Material thickness
Quantity x hole Ø
Action
Article-No.
333751
Dimension a
80 mm
Dimension b
65 mm
Material thickness
1.8 mm
Quantity x hole Ø
6 x Ø5 mm

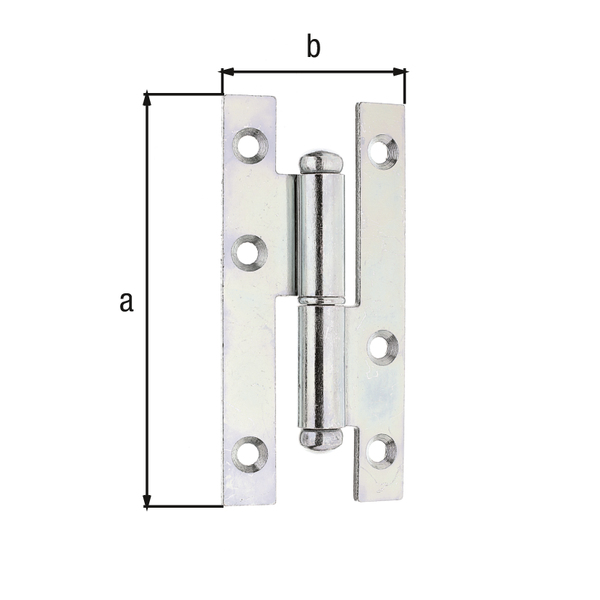

Article-No.
340902
Dimension a
94 mm
Dimension b
45 mm
Material thickness
2.5 mm
Quantity x hole Ø
6 x Ø5 mm

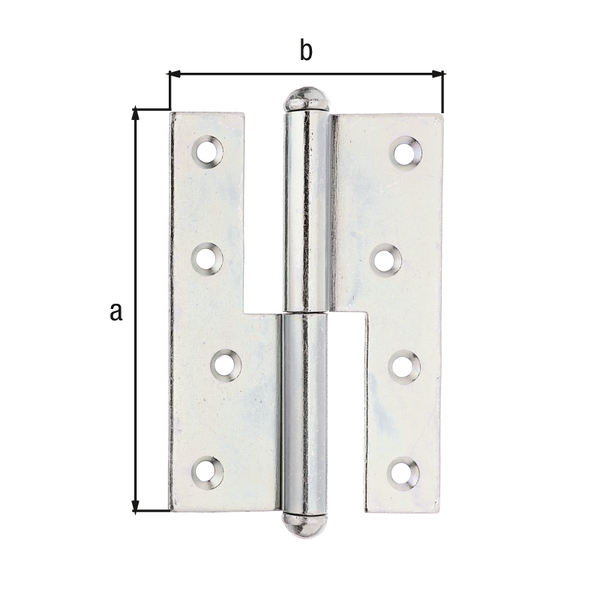

Article-No.
341244
Dimension a
120 mm
Dimension b
88 mm
Material thickness
2.7 mm
Quantity x hole Ø
8 x Ø6 mm
