• Lift-off hinge, adjustable, with countersunk screw holes, Material: raw steel, Surface: galvanised, thick-film passivated, Length: 83 mm, Width: 15 mm, Plate length: 40 mm, Plate width: 40 mm, No. of holes: 2 / 4, Hole: Ø6 / Ø5.3 mm
  • Lift-off hinge, adjustable, with countersunk screw holes, Material: raw steel, Surface: galvanised, thick-film passivated, Length: 83 mm, Width: 15 mm, Plate length: 40 mm, Plate width: 40 mm, No. of holes: 2 / 4, Hole: Ø6 / Ø5.3 mm

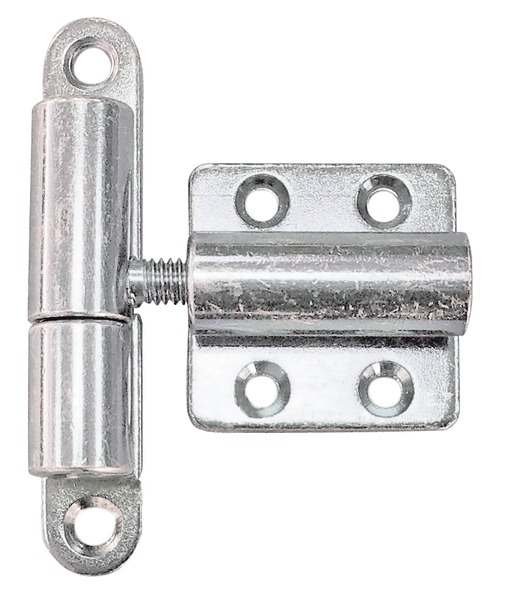

Lift-off hinge, adjustable

with countersunk screw holes
Art.-No. 341060

raw steel, galvanised, thick-film passivated

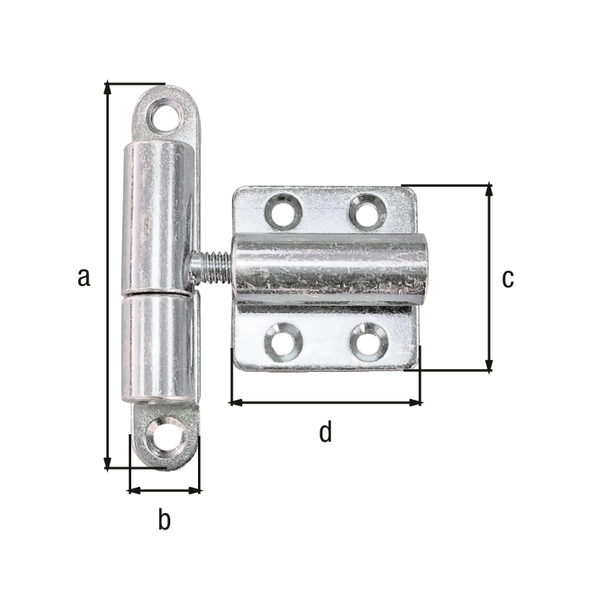

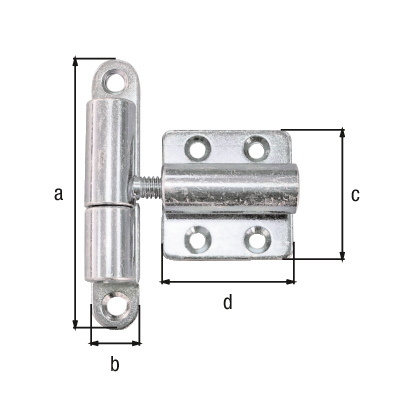

Dimension a:
83 mm
Dimension b:
15 mm
Dimension c:
40 mm
Dimension d:
40 mm
adjustable from:
60 - 85 mm
Quantity x hole Ø:
2 x Ø6 mm
Quantity x hole Ø:
4 x Ø5.3 mm
Material/surface:
raw steel, galvanised, thick-film passivated
Surface / Colour:
VERZ
Material:
Steel
Panel width:
40 mm
Length:
83 mm
Width:
15 mm
Panel length:
40 mm
Weight per UQ (kg):
0.160 kg
Contents Unit:
20 Piece
