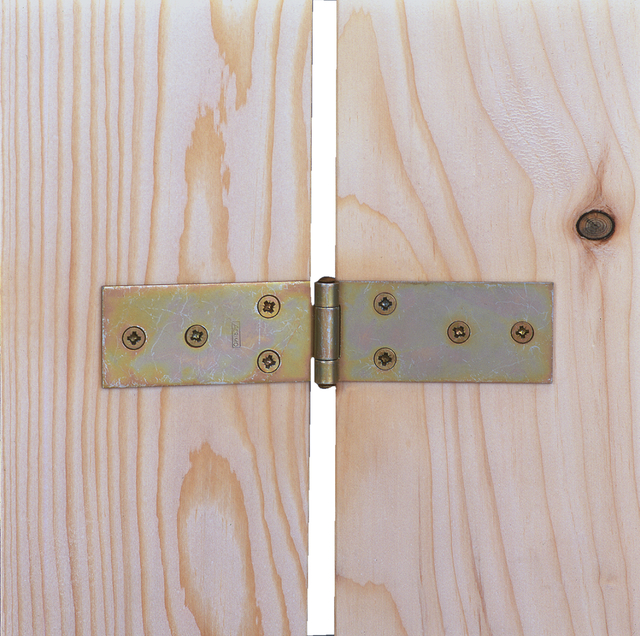

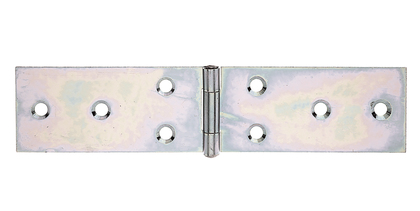

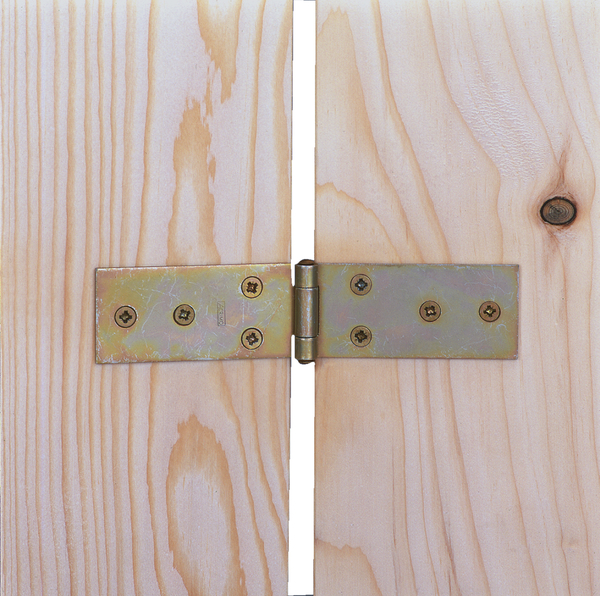

Table hinge
with countersunk screw holes
Art.-No. 346928
- Dimension a:
- 40 mm
- Dimension b:
- 180 mm
- Material thickness:
- 1.5 mm
- Quantity x hole Ø:
- 8 x Ø6 mm
- Material/surface:
- raw steel, sendzimir galvanised
- Surface / Colour:
- VERZ
- Material:
- Steel
- Length:
- 40 mm
- Width:
- 180 mm
- Type:
- rolled
- Weight per UQ (kg):
- 0.094 kg
- Contents Unit:
- 20 Piece
Article-No.
Dimension a
Dimension b
Material thickness
Quantity x hole Ø
Action
Article-No.
346867
Dimension a
25 mm
Dimension b
61.2 mm
Material thickness
0.9 mm
Quantity x hole Ø
6 x Ø3.5 mm
Article-No.
346874
Dimension a
28 mm
Dimension b
80 mm
Material thickness
1.3 mm
Quantity x hole Ø
6 x Ø4.5 mm
Article-No.
346881
Dimension a
32 mm
Dimension b
100 mm
Material thickness
1.5 mm
Quantity x hole Ø
6 x Ø4.6 mm
Article-No.
346898
Dimension a
32 mm
Dimension b
120 mm
Material thickness
1.5 mm
Quantity x hole Ø
8 x Ø5 mm
Article-No.
346904
Dimension a
34 mm
Dimension b
140 mm
Material thickness
1.5 mm
Quantity x hole Ø
8 x Ø5.2 mm
Article-No.
346911
Dimension a
37 mm
Dimension b
160 mm
Material thickness
1.5 mm
Quantity x hole Ø
8 x Ø5 mm
Article-No.
346928
Dimension a
40 mm
Dimension b
180 mm
Material thickness
1.5 mm
Quantity x hole Ø
8 x Ø6 mm
Article-No.
346935
Dimension a
44 mm
Dimension b
200 mm
Material thickness
2 mm
Quantity x hole Ø
10 x Ø6 mm
