Drop bolt for wooden or metal gates

with countersunk screw holes
Art.-No. 416805

raw steel, blue galvanised, for screwing on

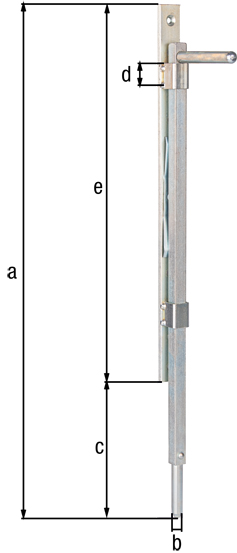

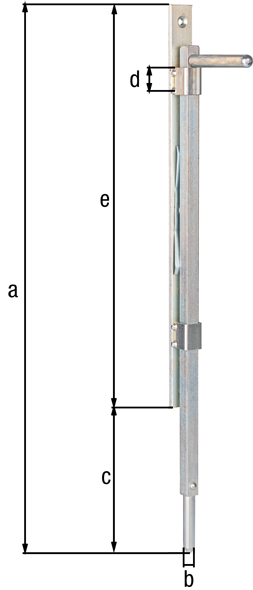

Dimension a:
500 mm
Dimension b:
14 x 14 mm
Dimension c:
150 mm
Dimension d:
25 mm
Dimension e:
390 mm
Drop bolt end piece-Ø:
12 x 60 mm
Hole:
M6
Quantity x hole Ø:
4 x Ø6.5 mm
Material/surface:
raw steel, blue galvanised, for screwing on
Panel width:
25 mm
Height:
500 mm
Weight per UQ (kg):
1.300 kg
Contents Unit:
1 Piece
  • The drop bolt is held at the set height by a spring.
  • The low installed height of just 25 mm and the ability to turn the actuating handle mean that it can be fitted in almost all rectangular and triangular tubes.
