• Gate hinge for 180° opening, Material: weld-on parts: raw steel, bolt and splint: stainless steel, Surface: screws and nuts: hot-dip galvanised, Length of weld-on plate: 50 mm, Clear width of U-part: 20 mm, Width of U-part: 45 mm, Length of eye bolt: 120 mm, Distance centre pin - end of U-part: 25 mm, Height of U-part: 45 mm, Thread: M12
  • Gate hinge for 180° opening, Material: weld-on parts: raw steel, bolt and splint: stainless steel, Surface: screws and nuts: hot-dip galvanised, Length of weld-on plate: 50 mm, Clear width of U-part: 20 mm, Width of U-part: 45 mm, Length of eye bolt: 120 mm, Distance centre pin - end of U-part: 25 mm, Height of U-part: 45 mm, Thread: M12

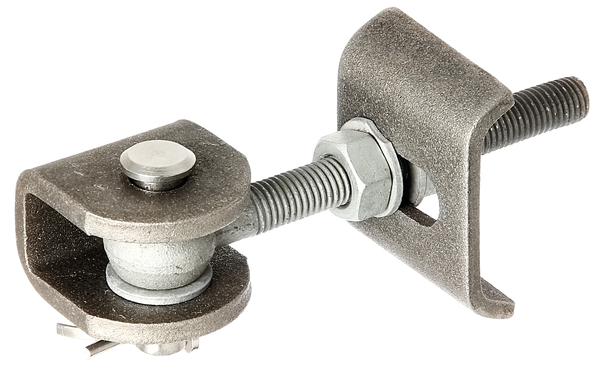

Gate hinge for 180° opening

Art.-No. 412074

weld-on parts: raw steel, bolt and splint: stainless steel, screws and nuts: hot-dip galvanised

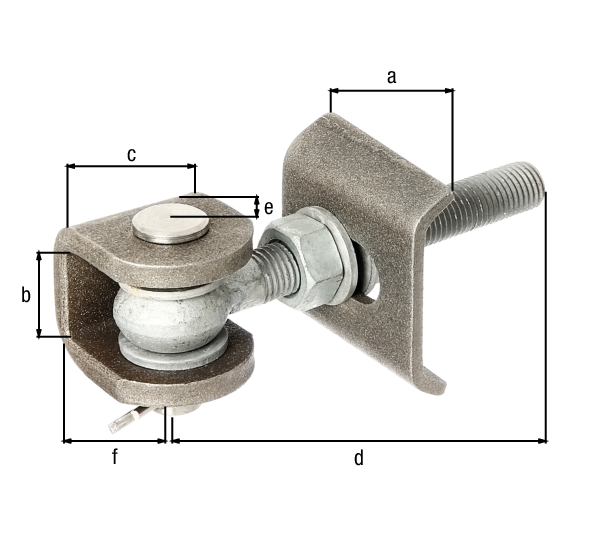

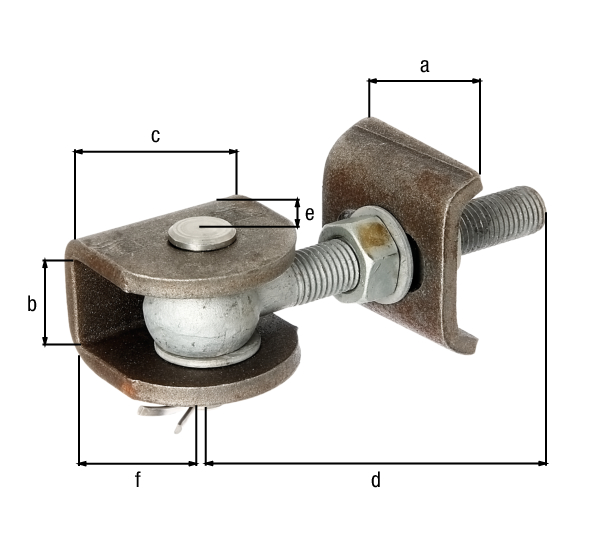

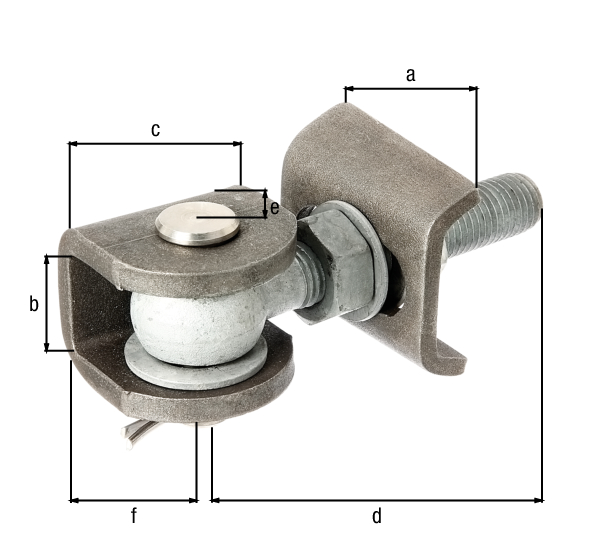

4 Variants

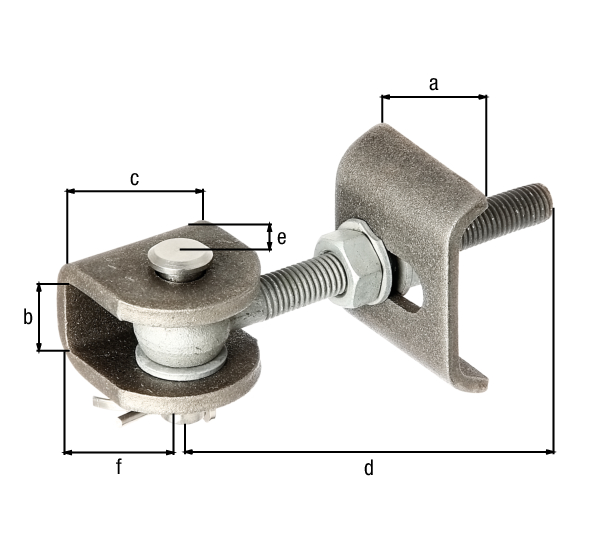

Dimension a:
50 mm
Dimension b:
20 mm
Dimension c:
45 mm
Dimension d:
120 mm
Dimension e:
25 mm
Dimension f:
45 mm
Thread:
M12
Material/surface:
weld-on parts: raw steel, bolt and splint: stainless steel, screws and nuts: hot-dip galvanised
Length:
50 mm
Width:
20 mm
Weight per UQ (kg):
0.607 kg
Contents Unit:
1 Piece
  • adjustable width
  • frame welded-on part as U-part replaces the gusset plate
