• Gate hinge for 180° opening, long version, Material: weld-on parts: raw steel, bolt and splint: stainless steel, Surface: screws and nuts: hot-dip galvanised, Length of weld-on strip: 135 mm, Distance weld-on plates: 19 mm, Width of weld-on plate: 44 mm, Length of eye bolt: 120 mm, Distance centre pin - end of weld-on plate: 25 mm, Height of weld-on part: 45 mm, Thread: M12
  • Gate hinge for 180° opening, long version, Material: weld-on parts: raw steel, bolt and splint: stainless steel, Surface: screws and nuts: hot-dip galvanised, Length of weld-on strip: 135 mm, Distance weld-on plates: 19 mm, Width of weld-on plate: 44 mm, Length of eye bolt: 120 mm, Distance centre pin - end of weld-on plate: 25 mm, Height of weld-on part: 45 mm, Thread: M12

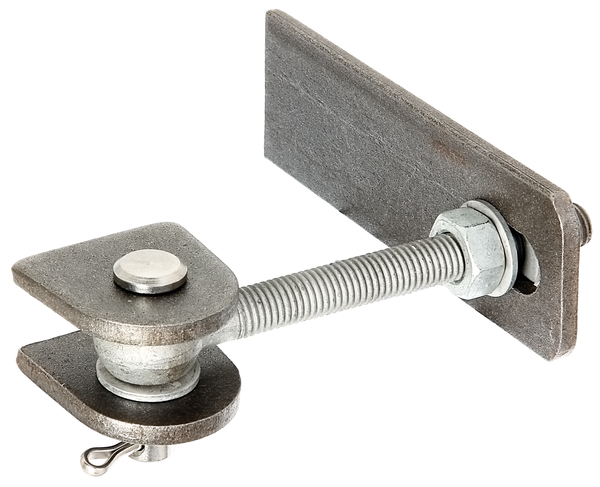

Gate hinge for 180° opening

long version
Art.-No. 411121
4 Variants

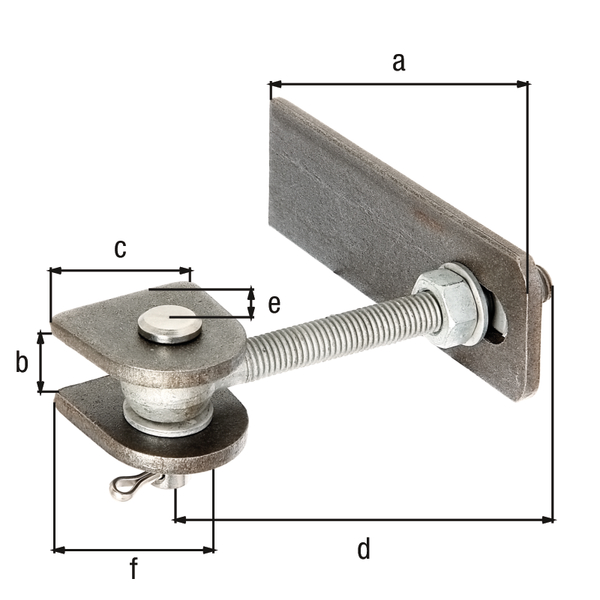

Dimension a:
135 mm
Dimension b:
19 mm
Dimension c:
44 mm
Dimension d:
120 mm
Dimension e:
25 mm
Dimension f:
45 mm
Thread:
M12
Material/surface:
weld-on parts: raw steel, bolt and splint: stainless steel, screws and nuts: hot-dip galvanised
Length:
135 mm
Width:
44 mm
Weight per UQ (kg):
0.59 kg
Contents Unit:
1 Piece
  • adjustable width
