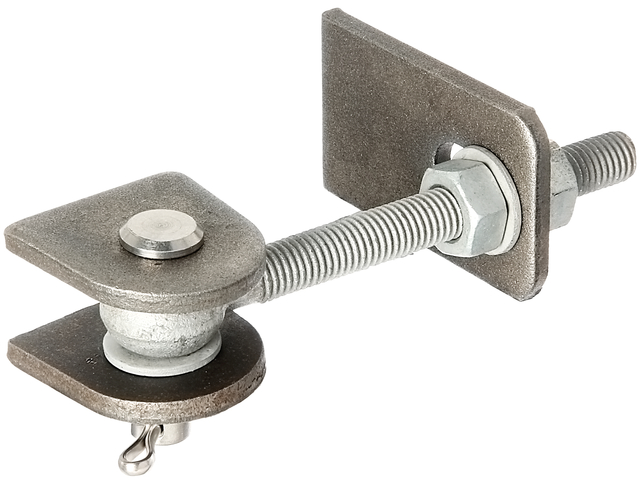

Gate hinge for 180° opening
short version
Art.-No. 417802
weld-on parts: raw steel, bolt and splint: stainless steel, screws and nuts: hot-dip galvanised
- Dimension a:
- 75 mm
- Dimension b:
- 19 mm
- Dimension c:
- 44 mm
- Dimension d:
- 120 mm
- Dimension e:
- 25 mm
- Dimension f:
- 45 mm
- Thread:
- M12
- Material/surface:
- weld-on parts: raw steel, bolt and splint: stainless steel, screws and nuts: hot-dip galvanised
- Length:
- 75 mm
- Width:
- 44 mm
- Weight per UQ (kg):
- 0.45 kg
- Contents Unit:
- 1 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No.
411053
Dimension a
75 mm
Dimension b
19 mm
Dimension c
44 mm
Dimension d
120 mm
Article-No.
411060
Dimension a
86 mm
Dimension b
23 mm
Dimension c
55 mm
Dimension d
130 mm
Article-No.
411077
Dimension a
130 mm
Dimension b
30 mm
Dimension c
80 mm
Dimension d
150 mm
Article-No.
411084
Dimension a
145 mm
Dimension b
33 mm
Dimension c
80 mm
Dimension d
150 mm
Article-No.
417802
Dimension a
75 mm
Dimension b
19 mm
Dimension c
44 mm
Dimension d
120 mm
Article-No.
417819
Dimension a
86 mm
Dimension b
23 mm
Dimension c
55 mm
Dimension d
130 mm
Article-No.
417826
Dimension a
130 mm
Dimension b
30 mm
Dimension c
80 mm
Dimension d
150 mm
Article-No.
417833
Dimension a
145 mm
Dimension b
33 mm
Dimension c
80 mm
Dimension d
150 mm
- adjustable width
