Gate hinge for 180° opening

adjustable in three levels
Art.-No. 411343

weld-on plate: raw steel, remaining parts: hot-dip galvanised

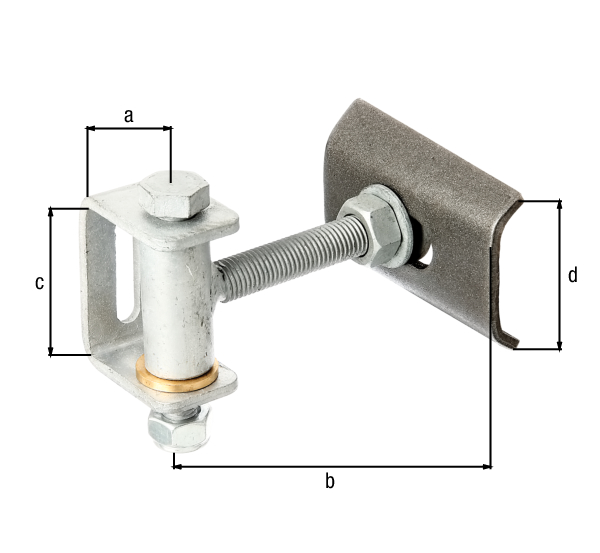

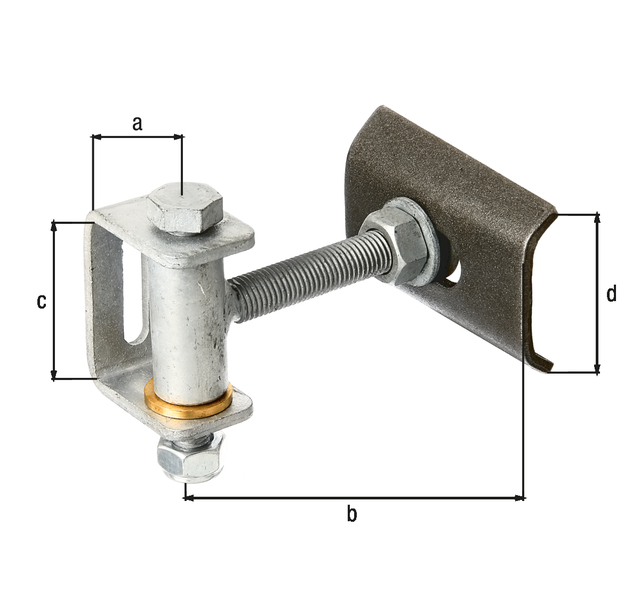

Dimension a:
35 mm
Dimension b:
132 mm
Dimension c:
70 mm
Dimension d:
70 mm
Dimension e:
136 mm
Thread:
M16
Max. load capacity:
150 kg
Quantity x hole (LxW):
1 x ( 44 x 9 ) mm
Material/surface:
weld-on plate: raw steel, remaining parts: hot-dip galvanised
Weight per UQ (kg):
1 kg
Contents Unit:
1 Piece

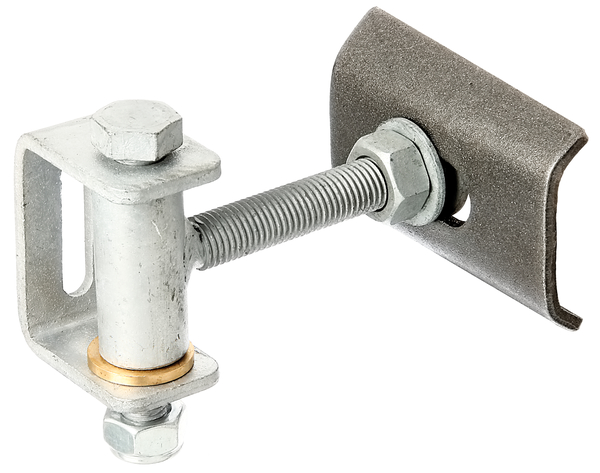

  • consists of a U-clip with elongated hole for screwing to posts, curved welding plate and one threaded rod
