• Gate hinge for 180° opening, adjustable in three levels, Material: weld-on plate: raw steel, Surface: remaining parts: hot-dip galvanised, 38 mm, 135 mm, eye height: 101 mm, Height of weld-on plate: 136 mm, Thread: M16, Max. load capacity: 300 kg, No. of holes: 2, Hole: 35 x 11 mm
  • Gate hinge for 180° opening, adjustable in three levels, Material: weld-on plate: raw steel, Surface: remaining parts: hot-dip galvanised, 38 mm, 135 mm, eye height: 101 mm, Height of weld-on plate: 136 mm, Thread: M16, Max. load capacity: 300 kg, No. of holes: 2, Hole: 35 x 11 mm

Gate hinge for 180° opening

adjustable in three levels
Art.-No. 411350

weld-on plate: raw steel, remaining parts: hot-dip galvanised

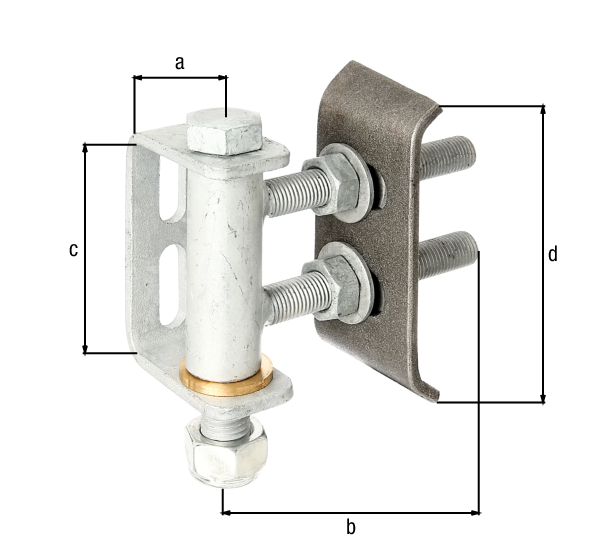

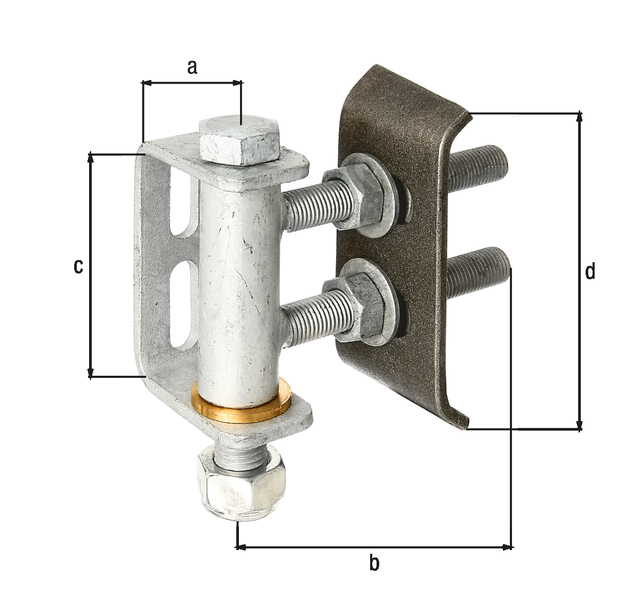

Dimension a:
38 mm
Dimension b:
135 mm
Dimension c:
101 mm
Dimension d:
136 mm
Thread:
M16
Max. load capacity:
300 kg
Quantity x hole (LxW):
2 x ( 35 x 11 ) mm
Material/surface:
weld-on plate: raw steel, remaining parts: hot-dip galvanised
Weight per UQ (kg):
1.9 kg
Contents Unit:
1 Piece

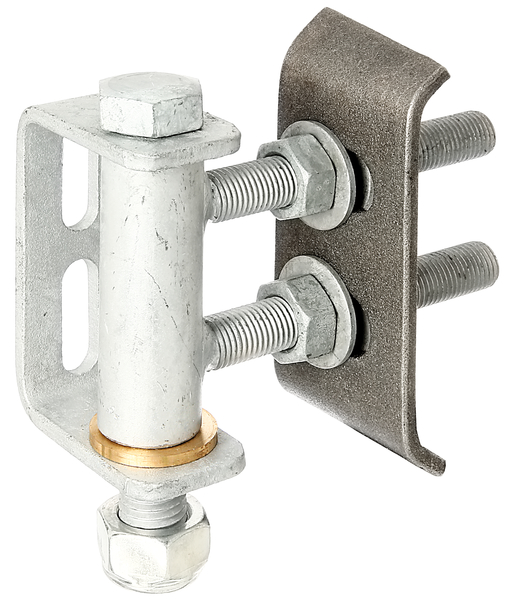

  • consists of a U-clip with two elongated holes for screwing to posts, curved welding plate and two threaded rods
