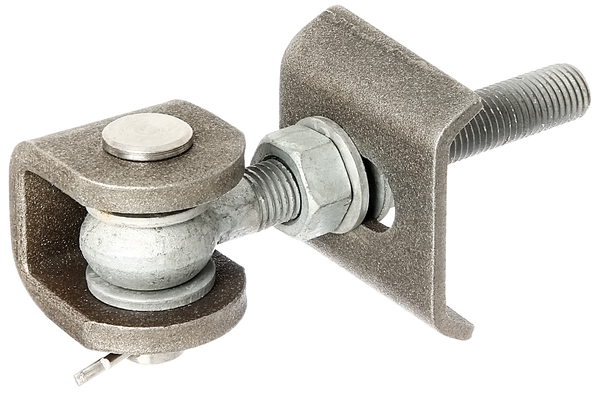

Gate hinge for 180° opening

Art.-No. 412173

weld-on parts: raw steel, bolt and splint: stainless steel, screws and nuts: hot-dip galvanised

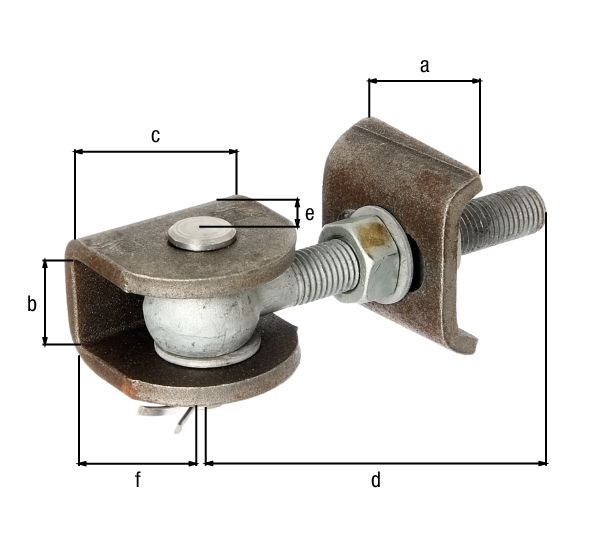

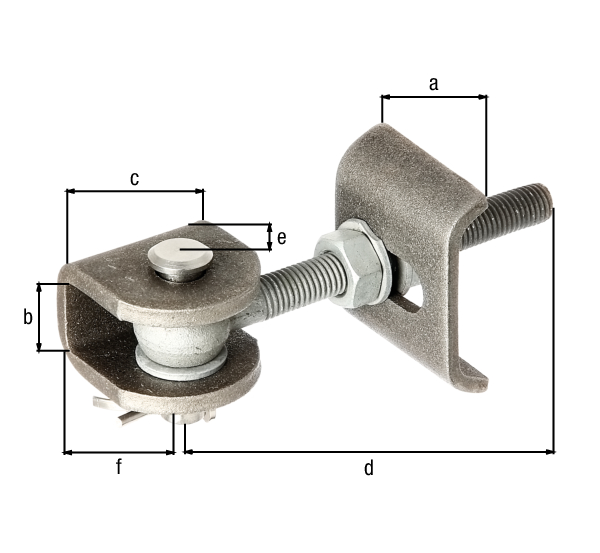

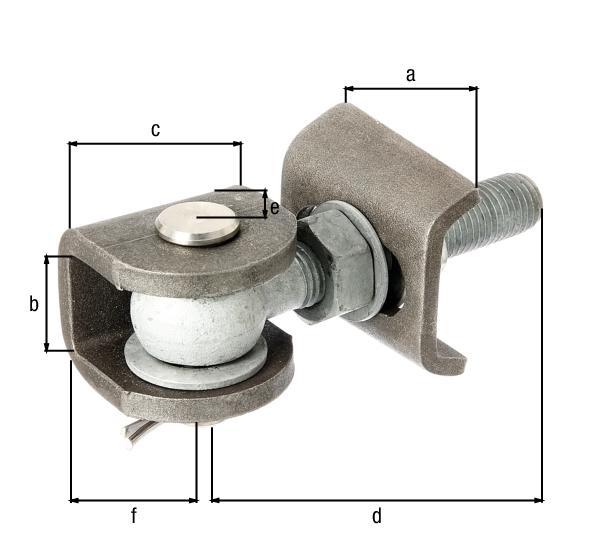

4 Variants

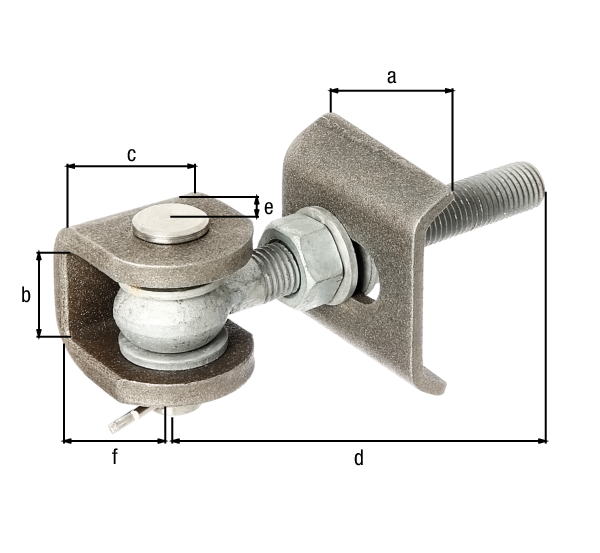

Dimension a:
60 mm
Dimension b:
27 mm
Dimension c:
45 mm
Dimension d:
130 mm
Dimension e:
28 mm
Dimension f:
50 mm
Thread:
M16
Material/surface:
weld-on parts: raw steel, bolt and splint: stainless steel, screws and nuts: hot-dip galvanised
Length:
60 mm
Width:
27 mm
Weight per UQ (kg):
0.836 kg
Contents Unit:
1 Piece
  • adjustable width
  • frame welded-on part as U-part replaces the gusset plate
