• Gate hinge for 180° opening, Material: weld-on parts: raw steel, bolt and splint: stainless steel, Surface: screws and nuts: hot-dip galvanised, Length of weld-on plate: 70 mm, Clear width of U-part: 33 mm, Width of U-part: 70 mm, Length of eye bolt: 150 mm, Distance centre pin - end of U-part: 34 mm, Height of U-part: 65 mm, Thread: M20
  • Gate hinge for 180° opening, Material: weld-on parts: raw steel, bolt and splint: stainless steel, Surface: screws and nuts: hot-dip galvanised, Length of weld-on plate: 70 mm, Clear width of U-part: 33 mm, Width of U-part: 70 mm, Length of eye bolt: 150 mm, Distance centre pin - end of U-part: 34 mm, Height of U-part: 65 mm, Thread: M20

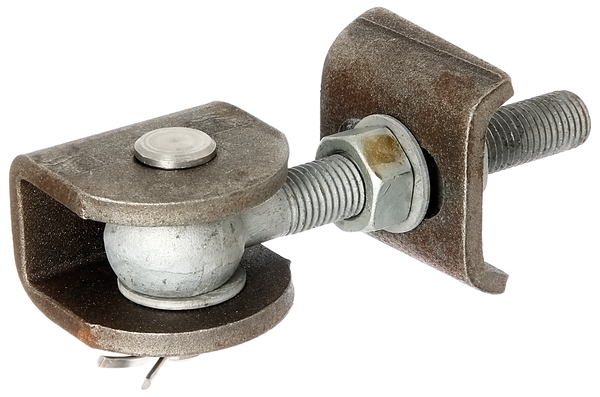

Gate hinge for 180° opening

Art.-No. 412180

weld-on parts: raw steel, bolt and splint: stainless steel, screws and nuts: hot-dip galvanised

4 Variants
Dimension a:
70 mm
Dimension b:
33 mm
Dimension c:
70 mm
Dimension d:
150 mm
Dimension e:
34 mm
Dimension f:
65 mm
Thread:
M20
Material/surface:
weld-on parts: raw steel, bolt and splint: stainless steel, screws and nuts: hot-dip galvanised
Length:
70 mm
Width:
33 mm
Weight per UQ (kg):
1.86 kg
Contents Unit:
1 Piece
  • adjustable width
  • frame welded-on part as U-part replaces the gusset plate
