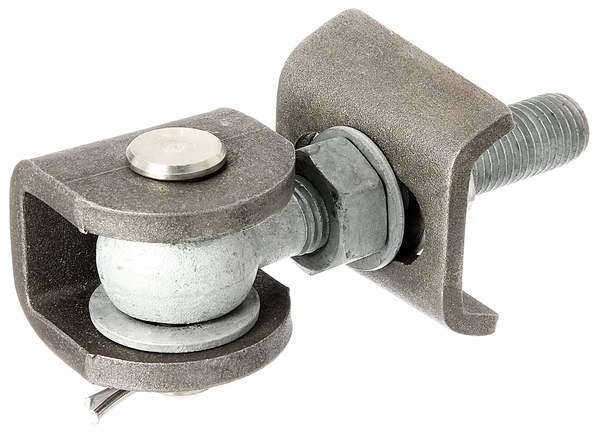

Gate hinge for 180° opening

Art.-No. 412197

weld-on parts: raw steel, bolt and splint: stainless steel, screws and nuts: hot-dip galvanised

4 Variants
Dimension a:
80 mm
Dimension b:
36 mm
Dimension c:
70 mm
Dimension d:
150 mm
Dimension e:
36 mm
Dimension f:
65 mm
Thread:
M24
Material/surface:
weld-on parts: raw steel, bolt and splint: stainless steel, screws and nuts: hot-dip galvanised
Length:
80 mm
Width:
36 mm
Weight per UQ (kg):
2.586 kg
Contents Unit:
1 Piece
  • adjustable width
  • frame welded-on part as U-part replaces the gusset plate
