• Gate hinge with plate for screwing on, adjustable in three levels, Material: weld-on plate: raw steel, Surface: plate, threaded bar, screws, nuts and washers: hot-dip galvanised, for welding on, Length: 146 mm, Height of weld-on part: 60 mm, Width of screw-on plate: 100 mm, Height of screw-on plate: 100 mm, Thread: M16, Material thickness of weld-on plate: 8.00 mm, No. of holes: 4, Hole: 20 x 11 mm
  • Gate hinge with plate for screwing on, adjustable in three levels, Material: weld-on plate: raw steel, Surface: plate, threaded bar, screws, nuts and washers: hot-dip galvanised, for welding on, Length: 146 mm, Height of weld-on part: 60 mm, Width of screw-on plate: 100 mm, Height of screw-on plate: 100 mm, Thread: M16, Material thickness of weld-on plate: 8.00 mm, No. of holes: 4, Hole: 20 x 11 mm

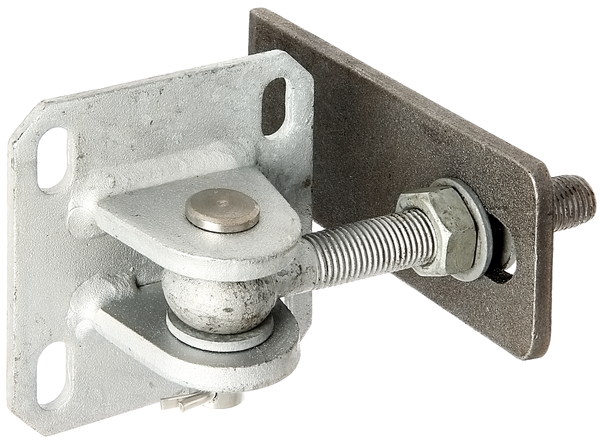

Gate hinge with plate for screwing on

adjustable in three levels
Art.-No. 418649

weld-on plate: raw steel, plate, threaded bar, screws, nuts and washers: hot-dip galvanised, for welding on

2 Variants

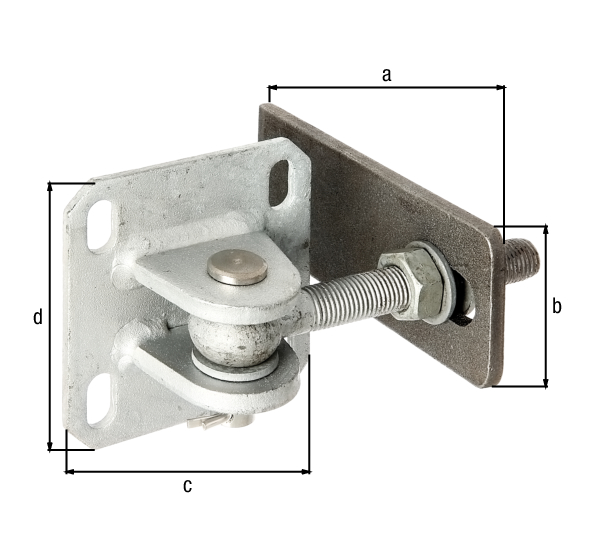

Dimension a:
146 mm
Dimension b:
60 mm
Dimension c:
100 mm
Dimension d:
100 mm
Thread:
M16
Material thickness of weld-on plate:
8 mm
Quantity x hole (LxW):
4 x ( 20 x 11 ) mm
Material/surface:
weld-on plate: raw steel, plate, threaded bar, screws, nuts and washers: hot-dip galvanised, for welding on
Length:
146 mm
Weight per UQ (kg):
1.55 kg
Contents Unit:
1 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No. 418649
Dimension a 146 mm
Dimension b 60 mm
Dimension c 100 mm
Dimension d 100 mm

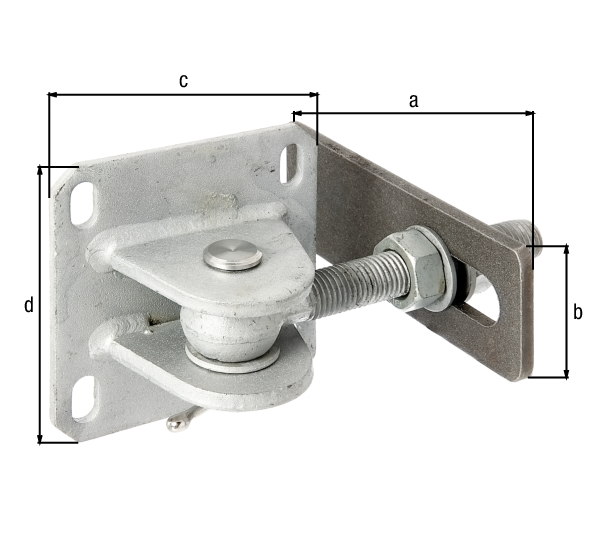

Article-No. 418656
Dimension a 170 mm
Dimension b 60 mm
Dimension c 120 mm
Dimension d 120 mm
