• Gate hinge with U-bracket for welding and plate for screwing on, Material: U-clip: raw steel, connecting bolt and circlip: stainless steel, Surface: plate and eye screw: hot-dip galvanised, Width: 100 mm, Height: 100 mm, eye height: 42 mm, Clip width: 30 mm, can be adjusted by: 20 mm, Thread: M20, No. of holes: 4, Hole: Ø11 mm
  • Gate hinge with U-bracket for welding and plate for screwing on, Material: U-clip: raw steel, connecting bolt and circlip: stainless steel, Surface: plate and eye screw: hot-dip galvanised, Width: 100 mm, Height: 100 mm, eye height: 42 mm, Clip width: 30 mm, can be adjusted by: 20 mm, Thread: M20, No. of holes: 4, Hole: Ø11 mm

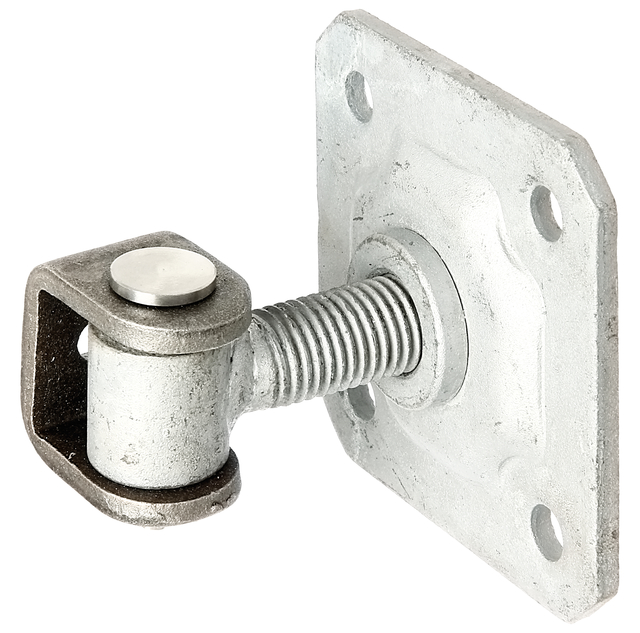

Gate hinge with U-bracket for welding and plate for screwing on

Art.-No. 418403

U-clip: raw steel, connecting bolt and circlip: stainless steel, plate and eye screw: hot-dip galvanised

2 Variants

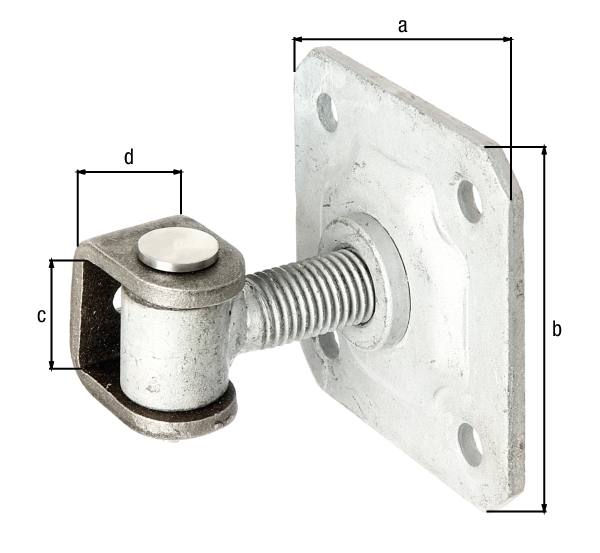

Dimension a:
100 mm
Dimension b:
100 mm
Dimension c:
42 mm
Dimension d:
30 mm
can be adjusted by:
20 mm
Thread:
M20
Quantity x hole Ø:
4 x Ø11 mm
Material/surface:
U-clip: raw steel, connecting bolt and circlip: stainless steel, plate and eye screw: hot-dip galvanised
Width:
100 mm
Height:
100 mm
Weight per UQ (kg):
0.855 kg
Contents Unit:
1 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action

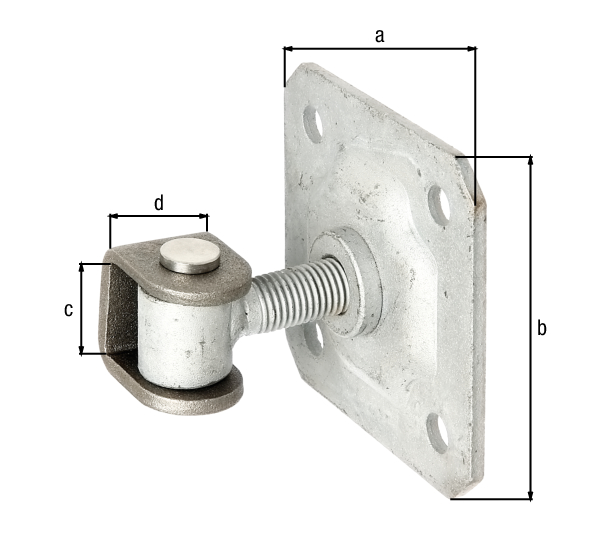

Article-No. 418397
Dimension a 100 mm
Dimension b 100 mm
Dimension c 37 mm
Dimension d 30 mm
Article-No. 418403
Dimension a 100 mm
Dimension b 100 mm
Dimension c 42 mm
Dimension d 30 mm
