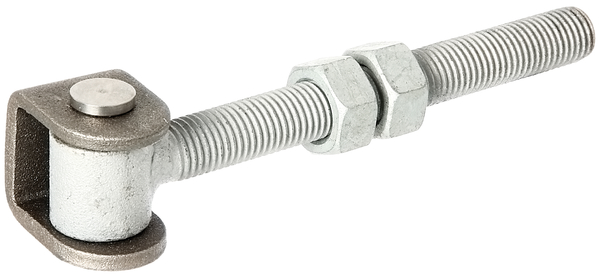

Gate hinge with U-bracket for welding and threads for screwing through
for posts up to Ø 120 mm or 120 x 120 mm
Art.-No. 418366
U-clip: raw steel, connecting bolt and circlip: stainless steel

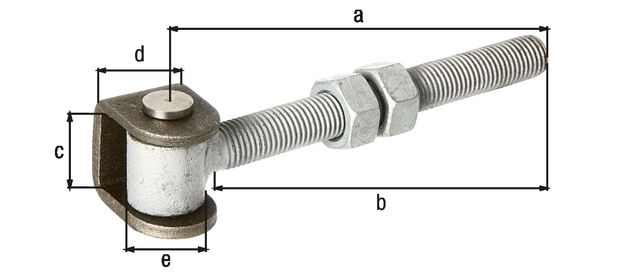

- Dimension a:
- 144 mm
- Dimension b:
- 138 mm
- Dimension c:
- 37 mm
- Dimension d:
- 30 mm
- Dimension e-Ø:
- 25 mm
- Thread:
- M16
- Material/surface:
- U-clip: raw steel, connecting bolt and circlip: stainless steel
- :
- 138 mm
- Length:
- 144 mm
- Weight per UQ (kg):
- 0.435 kg
- Contents Unit:
- 1 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No.
418366
Dimension a
144 mm
Dimension b
138 mm
Dimension c
37 mm
Dimension d
30 mm

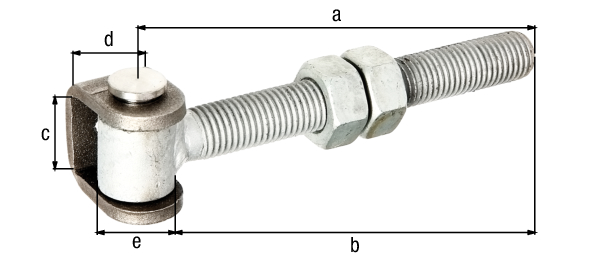

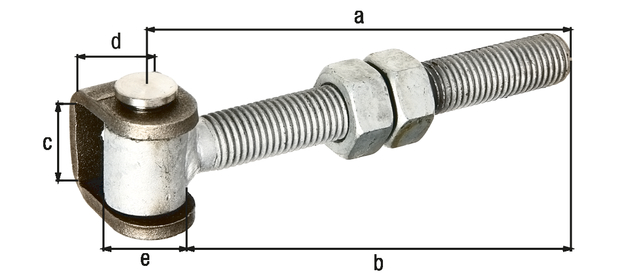

Article-No.
418373
Dimension a
153 mm
Dimension b
145 mm
Dimension c
42 mm
Dimension d
30 mm
