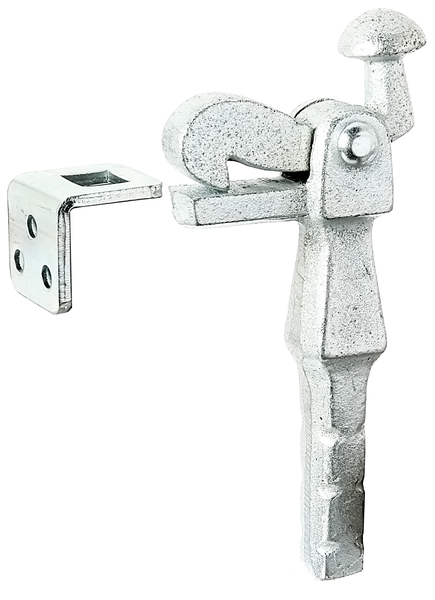

Gate stop for fixing in the ground

with counterplate for screwing on
Art.-No. 412814

grey cast iron, blue galvanised, for setting in concrete

2 Variants

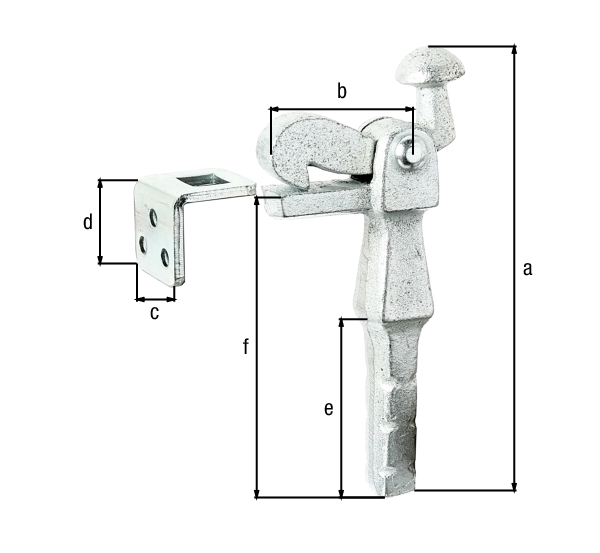

Dimension a:
168 mm
Dimension b:
52 mm
Dimension c:
35 mm
Dimension d:
34 mm
Dimension e:
71 mm
Dimension f:
124 mm
Plate thickness:
4 mm
Quantity x hole Ø:
3 x Ø6.5 mm
Material/surface:
grey cast iron, blue galvanised, for setting in concrete
Height:
168 mm
Depth:
52 mm
Weight per UQ (kg):
0.622 kg
Contents Unit:
5 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No. 412814
Dimension a 168 mm
Dimension b 52 mm
Dimension c 35 mm
Dimension d 34 mm

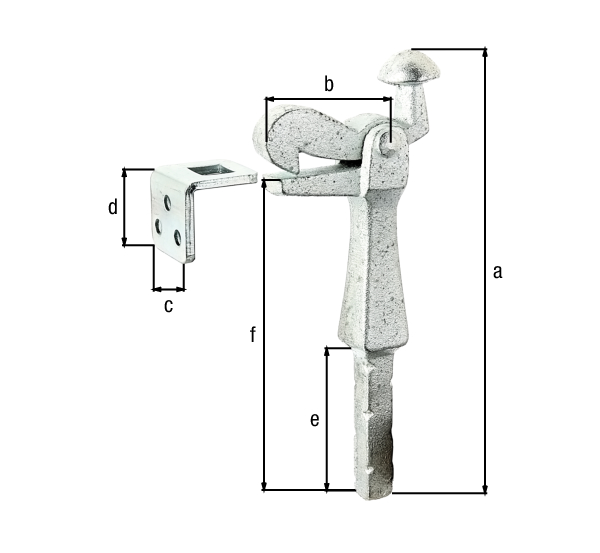

Article-No. 412821
Dimension a 191 mm
Dimension b 52 mm
Dimension c 35 mm
Dimension d 34 mm

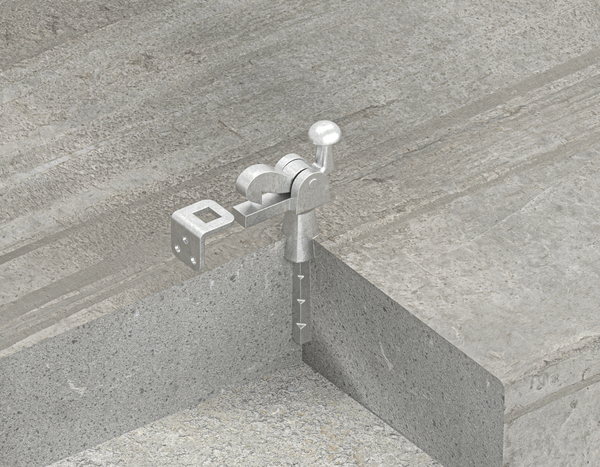

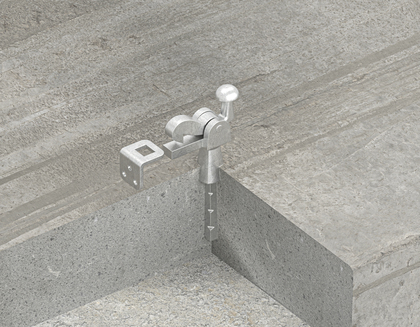

  • Embedding depth at least 75 mm
