• Gate stop for fixing in the ground, with counterplate for screwing on, Material: grey cast iron, Surface: blue galvanised, for setting in concrete, Height: 191 mm, Depth: 52 mm, Width of counterplate: 35 mm, Height of counter-plate: 34 mm, Length of concrete anchor: 71 mm, Distance lower edge of concrete anchor - support of gate stopper: 150 mm, No. of holes: 3, Hole: Ø6.5 mm
  • Gate stop for fixing in the ground, with counterplate for screwing on, Material: grey cast iron, Surface: blue galvanised, for setting in concrete, Height: 191 mm, Depth: 52 mm, Width of counterplate: 35 mm, Height of counter-plate: 34 mm, Length of concrete anchor: 71 mm, Distance lower edge of concrete anchor - support of gate stopper: 150 mm, No. of holes: 3, Hole: Ø6.5 mm

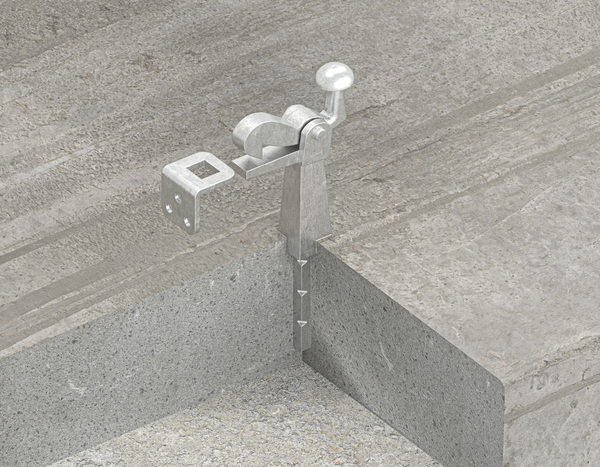

Gate stop for fixing in the ground

with counterplate for screwing on
Art.-No. 412821

grey cast iron, blue galvanised, for setting in concrete

2 Variants
Dimension a:
191 mm
Dimension b:
52 mm
Dimension c:
35 mm
Dimension d:
34 mm
Dimension e:
71 mm
Dimension f:
150 mm
Plate thickness:
4 mm
Quantity x hole Ø:
3 x Ø6.5 mm
Material/surface:
grey cast iron, blue galvanised, for setting in concrete
Height:
191 mm
Depth:
52 mm
Weight per UQ (kg):
0.632 kg
Contents Unit:
5 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Dimension d
Action
Article-No. 412814
Dimension a 168 mm
Dimension b 52 mm
Dimension c 35 mm
Dimension d 34 mm
Article-No. 412821
Dimension a 191 mm
Dimension b 52 mm
Dimension c 35 mm
Dimension d 34 mm
  • Embedding depth at least 75 mm
