• Gate track roller for heavy gates, for gates weighing up to 450 kg, Material: raw steel, Surface: hot-dip galvanised, for screwing on, Height: 400 mm, Roller dia.: 125 mm, Plate width: 130 mm, Plate height: 30 mm, Distance from middle to middle of hole: 150 mm, No. of holes: 4, Hole: Ø8.5 mm
  • Gate track roller for heavy gates, for gates weighing up to 450 kg, Material: raw steel, Surface: hot-dip galvanised, for screwing on, Height: 400 mm, Roller dia.: 125 mm, Plate width: 130 mm, Plate height: 30 mm, Distance from middle to middle of hole: 150 mm, No. of holes: 4, Hole: Ø8.5 mm

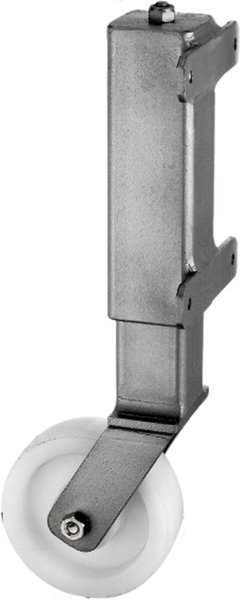

Gate track roller for heavy gates

for gates weighing up to 450 kg
Art.-No. 416867

raw steel, hot-dip galvanised, for screwing on

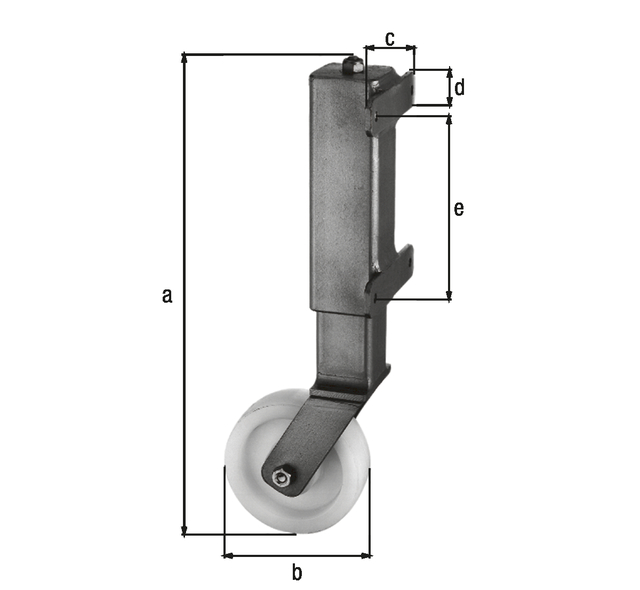

Dimension a:
400 mm
Dimension b-Ø:
125 mm
Dimension c:
130 mm
Dimension d:
30 mm
Dimension e:
150 mm
Quantity x hole Ø:
4 x Ø8.5 mm
Material/surface:
raw steel, hot-dip galvanised, for screwing on
Roll Ø:
125 mm
Panel width:
130 mm
Height:
400 mm
Weight per UQ (kg):
4.210 kg
Contents Unit:
1 Piece
  • the spring-loaded telescopic leg with a spring travel of up to 60 mm serves to smooth out any unevennesses in the gate entrance
