• Gate track roller for light gates, for gates weighing up to 70 kg, Material: raw steel, Surface: hot-dip galvanised, for screwing on, Height: 400 mm, Roller dia.: 100 mm, Plate width: 30 mm, Plate height: 255 mm, Distance from middle to middle of hole: 225 mm, No. of holes: 2, Hole: Ø8.5 mm
  • Gate track roller for light gates, for gates weighing up to 70 kg, Material: raw steel, Surface: hot-dip galvanised, for screwing on, Height: 400 mm, Roller dia.: 100 mm, Plate width: 30 mm, Plate height: 255 mm, Distance from middle to middle of hole: 225 mm, No. of holes: 2, Hole: Ø8.5 mm

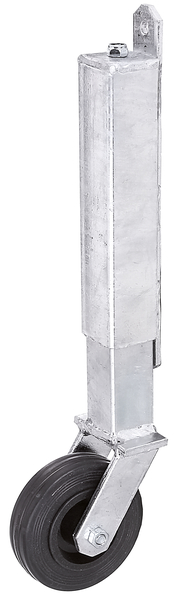

Gate track roller for light gates

for gates weighing up to 70 kg
Art.-No. 416850

raw steel, hot-dip galvanised, for screwing on

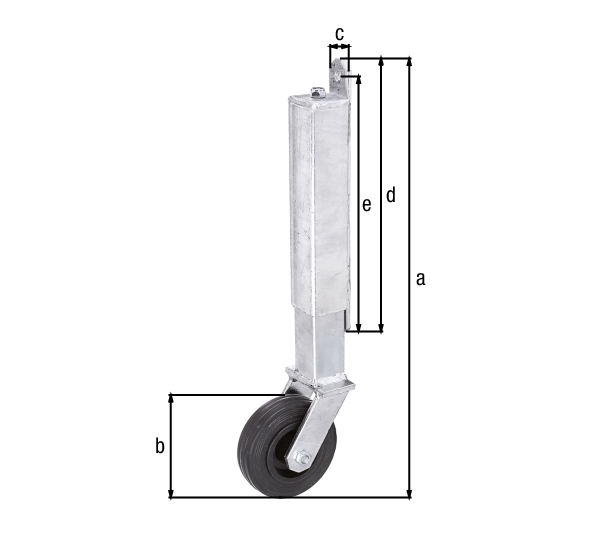

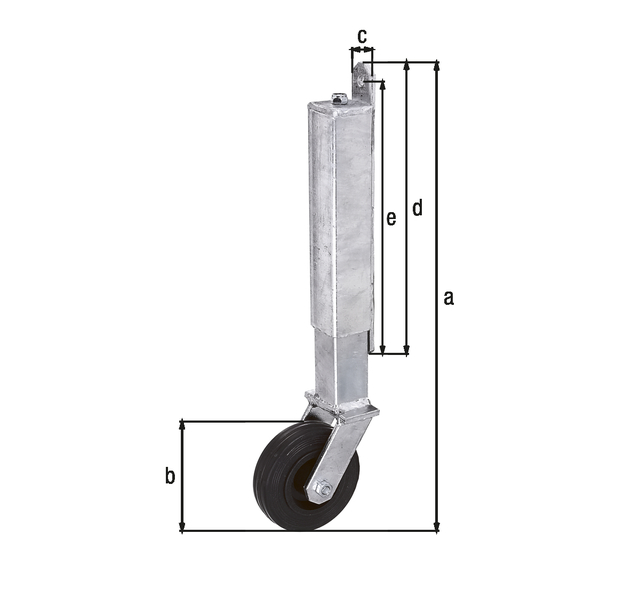

Dimension a:
400 mm
Dimension b-Ø:
100 mm
Dimension c:
30 mm
Dimension d:
255 mm
Dimension e:
225 mm
Quantity x hole Ø:
2 x Ø8.5 mm
Material/surface:
raw steel, hot-dip galvanised, for screwing on
Roll Ø:
100 mm
Panel width:
30 mm
Height:
400 mm
Weight per UQ (kg):
2.100 kg
Contents Unit:
1 Piece
  • the spring-loaded telescopic leg with a spring travel of up to 60 mm serves to smooth out any unevennesses in the gate entrance
